Product Name: Housing Wall Tie
Item Code: Smart Craftsmen-VE4WT
Surface Treatment: Shiny.
Raw Material: Stainless Steel 304( Grade1.4301) or Up on your request.

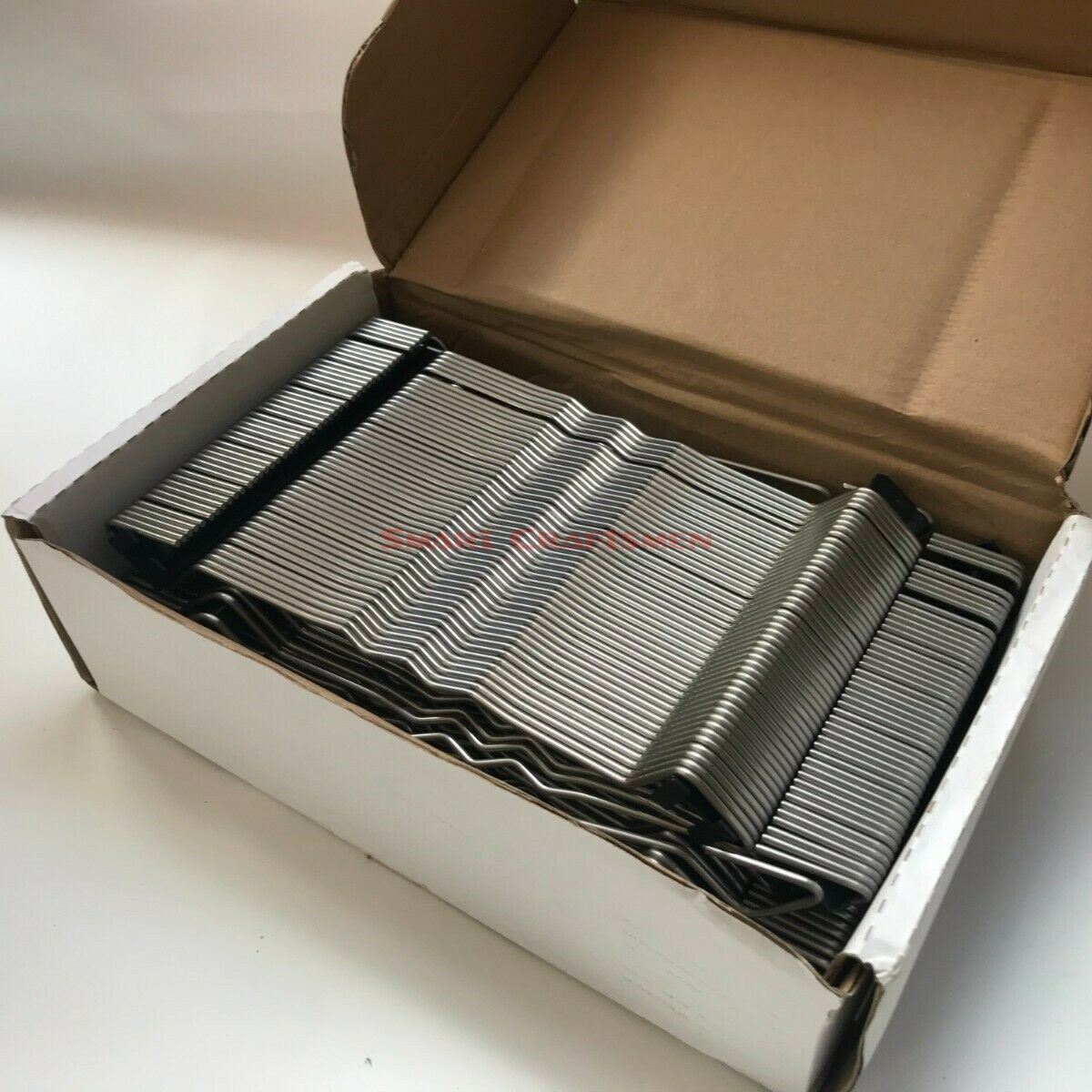

Package: 250 pieces / Inner Box, 2 or 4 Inner boxes / Master Carton.
Place of Origin: Hebei, China.
Standards: PD 6697 and EN 845-1:2013+A1:2016.

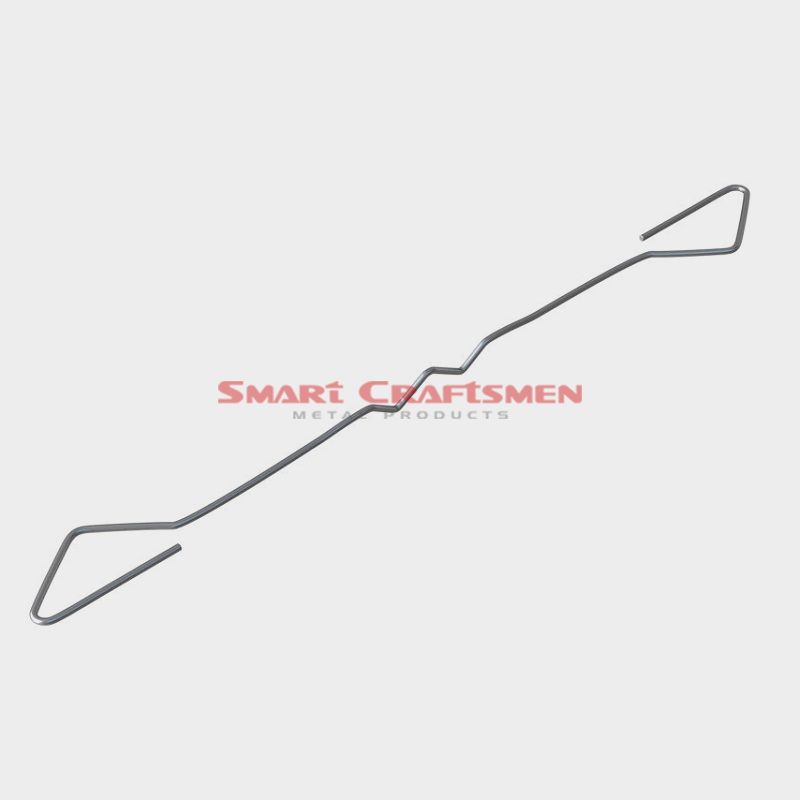

The Stainless Steel Housing Wall Tie Multidrip feature to prevent moisture travelling across the cavity. The design means that the tie can be installed either way up. Tested as Type A (sound) Tested as Type 4 (strength) to BS EN 845-1.
Specifications
Size | Wire Thickness | Packing | Raw Material |
200mm | 2.1mm | 250 pieces / box | 304 or other Stainless Steel Wire( steel grade 1.4301,etc.) |
225mm | 2.3mm | ||
250mm | 2.8mm | ||
275mm | 2.8mm |
Benefits

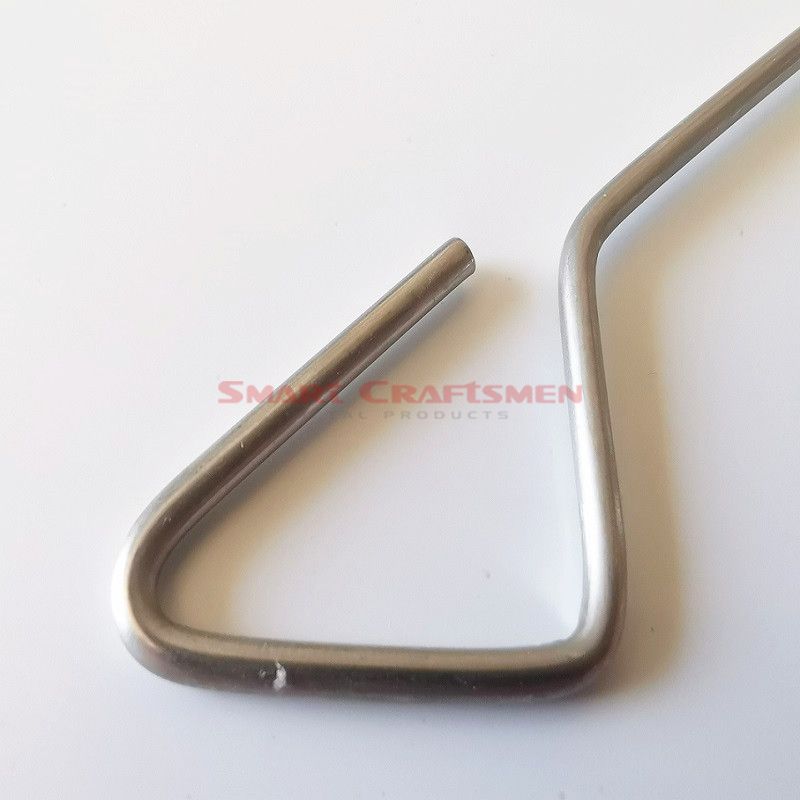

Specially designed safety ends provide excellent mortar key, reduce the risk of injury on site and prevent tangling.
Clear, easily distinguishable packaging for on-site ease when different types of wall tie may be required.
Manufactured from corrosion resistant stainless steel, whilst the high tensile wire minimises thermal loss through cold bridging.
Multiple drips prevent water crossing the cavity whichever way up the tie is installed.
Note
Other special length and wire thickness is upon customers' requested.
