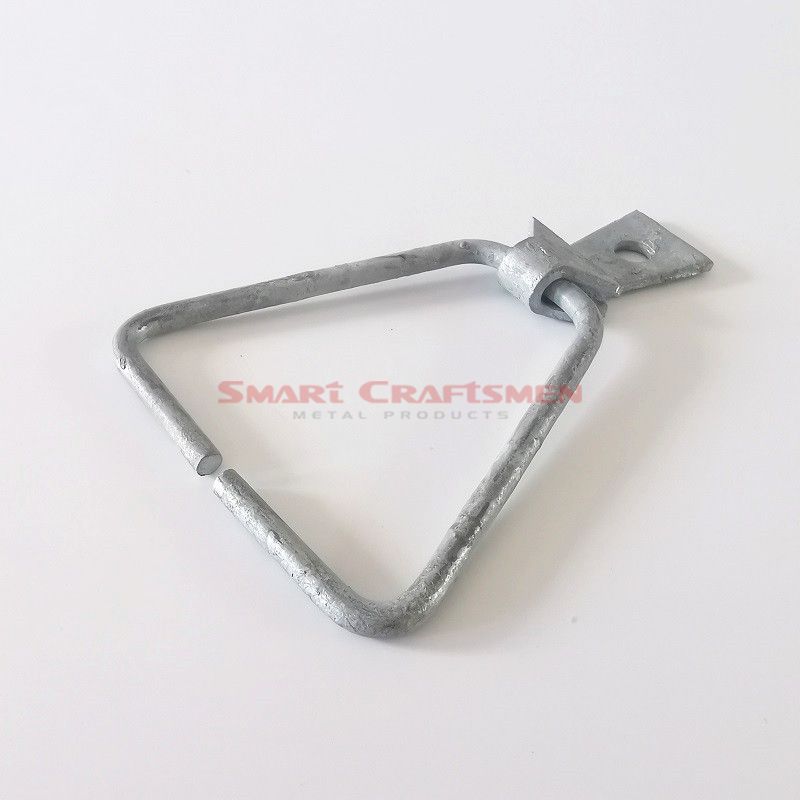

Product Name: Dovetail Triangular Veneer Anchor
Item Code: Smart Craftsmen-DTVA
Surface Treatment: Hot-Dipped Galvanized or Zinc Palted or Stainless Steel.
Raw Material: Sheet Metal (Carbon Steel) ASTM A1008 / A1008M.
Package: 500 pieces / Carton. Inner boxes / Master Carton or Customized.
Place of Origin: Hebei, China.
Delivery Port: Tianjin-China.
The Dovetail Triangular Veneer Anchor is used for attaching brick veneer to an existing concrete wall that contains standard 1" deep x 1" wide dovetail slot with a 5/8" throat at the face of concrete.This can also be used as an adjustable veneer anchor with concrete walls containing #100 Dovetail Anchor Slot.
Specifications
A: SHEET METAL - (Carbon Steel) ASTM A1008 / A1008M
B: Mill Galvanized / Zinc Coating: ASTM A641 / A641M (0.10 0z per sq ft)
C: Hot Dip Galvanized after fabrication / Zinc Coating, ASTM A153 / A153M-B2 (1.50 oz per sq ft)
| Dovetail | Triangle Diameter | Triangle Size |
12 gauge x 7/8" with 5/16" hole | 3/16" or 1/4" | 3"x3" |
| 4"x4" | ||
| 5"x5" | ||
| 6"x6" | ||
| 7"x7" | ||
| 7"x9" | ||
| Note | Custom sizes and design are available. | |
Finishes
A: Mill Galvanized.
B: Hot-Dipped Galvanized.
C: Stainless Steel D: Other special requirements of raw material is available.
