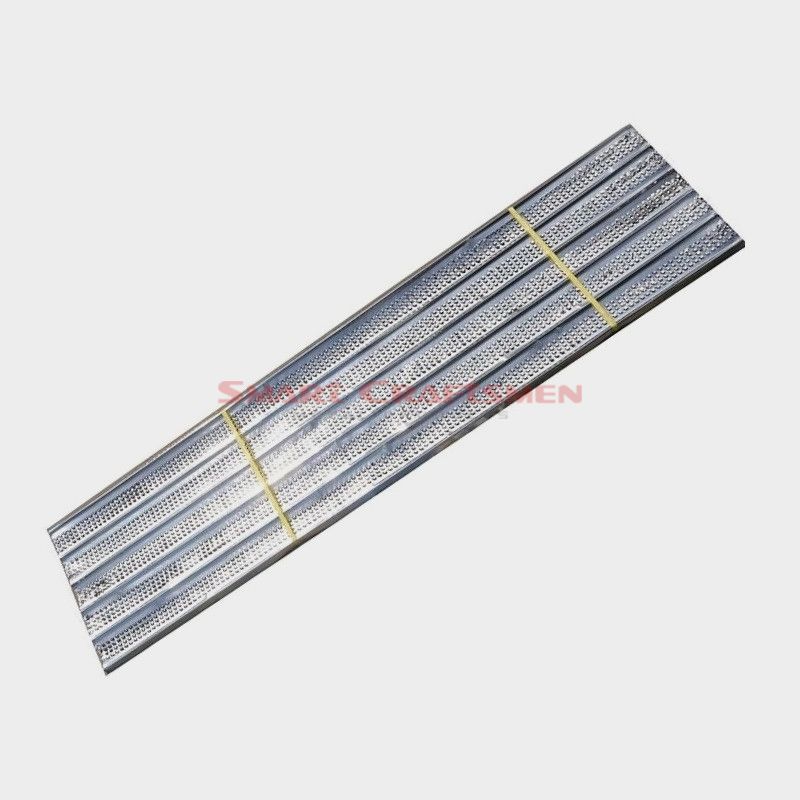

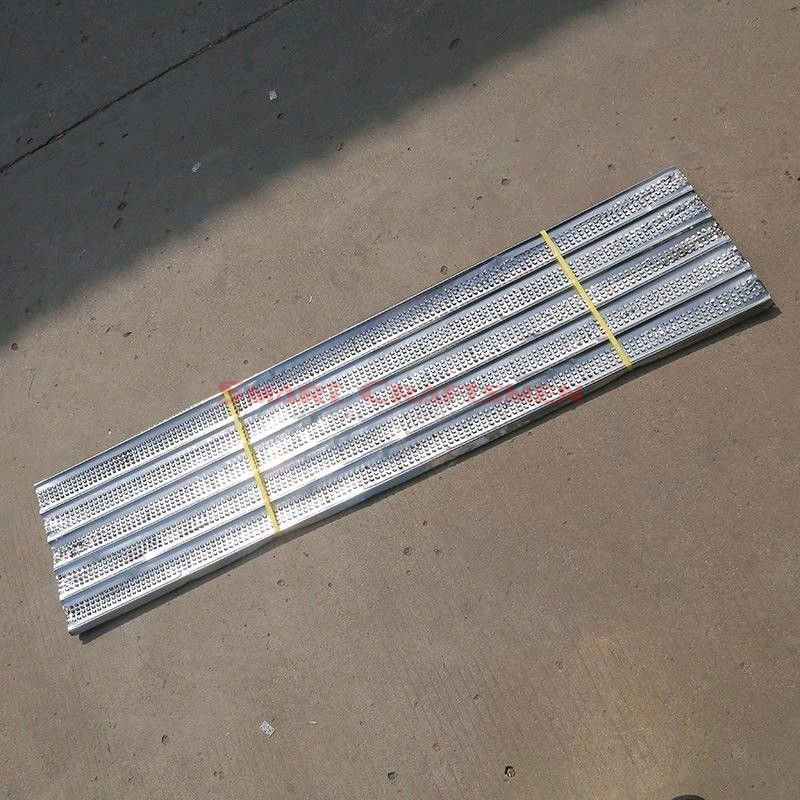

Hy Rib Lath/Permanent Formwork/Expanded Metal Formwork

Product Name:  Hy Rib Lath / Permanent Formwork / Expanded Metal Formwork

Item Code:  Smart Craftsmen-HyRib

Raw Material: Galvanised steel or Stainless Steel.

Package: Cartons and Pallets or Customized.

Length: 2.0-3.0 Metre or Customized.

Place of Origin:  Hebei, China.

Standards: EN 10346 DX51D Z275 and SS garde of 1.4301 Stainless Steel or others.

Products Details

Stopend Corrosion resistance Inflatable Hy-Rib high ribbed Inflatable Formwork expanded metal lath, Hy Rib Lath / Permanent Formwork / Expanded Metal Formwork

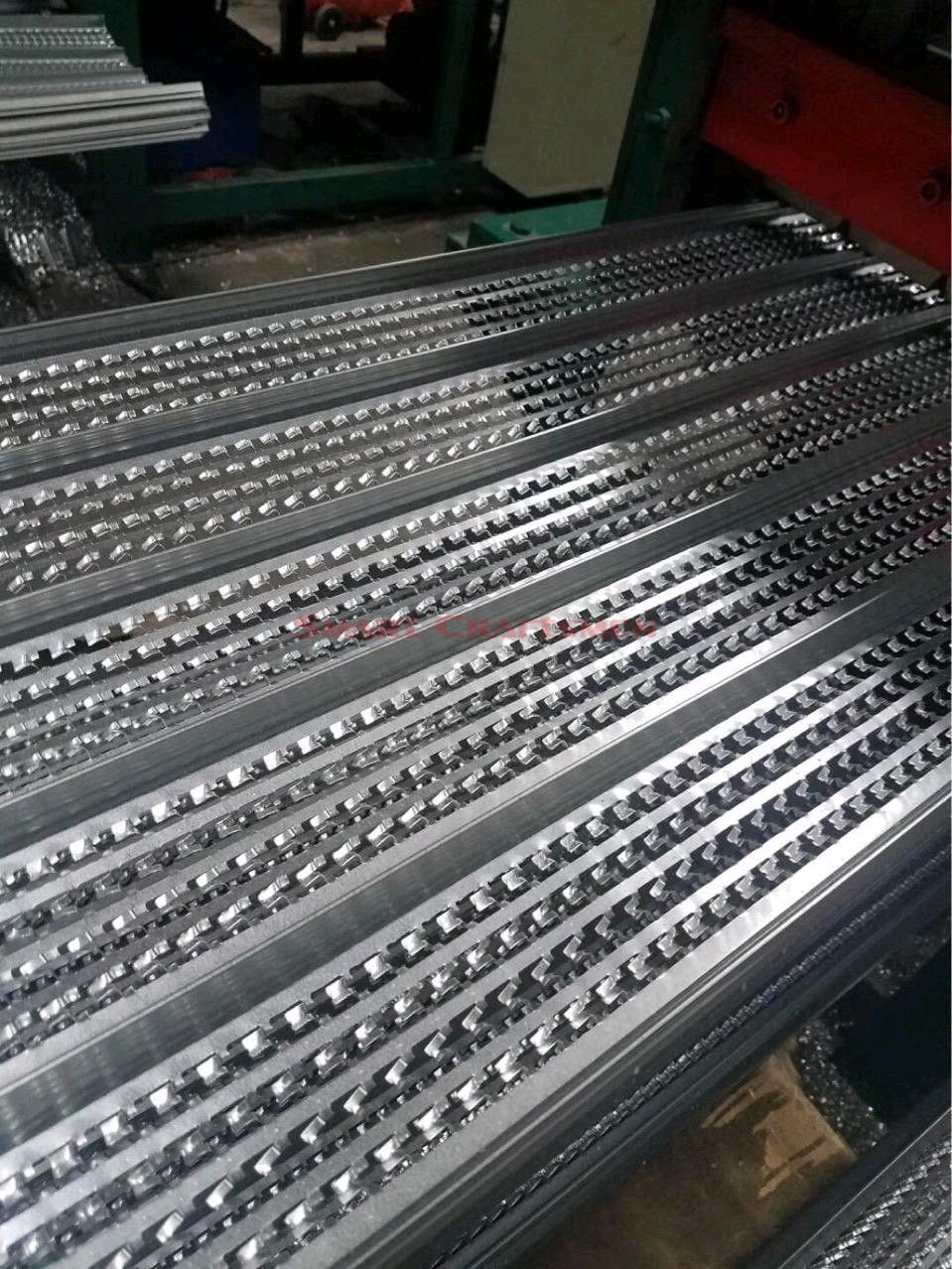

Hy-Rib is an expanded metal sheet product, specifically developed for use as permanent formwork to concrete. The profile of the open mesh, in combination with the Hy-Rib tangs, allow the development of dense concrete nodules and indents on the face of the Hy-Rib, forming an enhanced mechanical key for the second phase pour. In the case of visible elements, the resulting

Hy-Rib surface is suitable to receive a rendered or tiled finish.

Hy-Rib is primarily used in construction joint applications but it is also used to form wall, beam & column surfaces and slabs soffits, where the formed surface will not be seen. For over 80 years

Hy-Rib has been successfully used as permanent formwork on innumerable building & infrastructure projects, throughout the world.

Hy-Rib has an enviable portfolio of technical data. Independent bodies have undertaken full scale testing programmes to determine and verify Hy-Rib’s effectiveness in forming construction joints. The result is a product with well defined engineering properties, established formwork pressure characteristics and measured improvements to the joint performance.

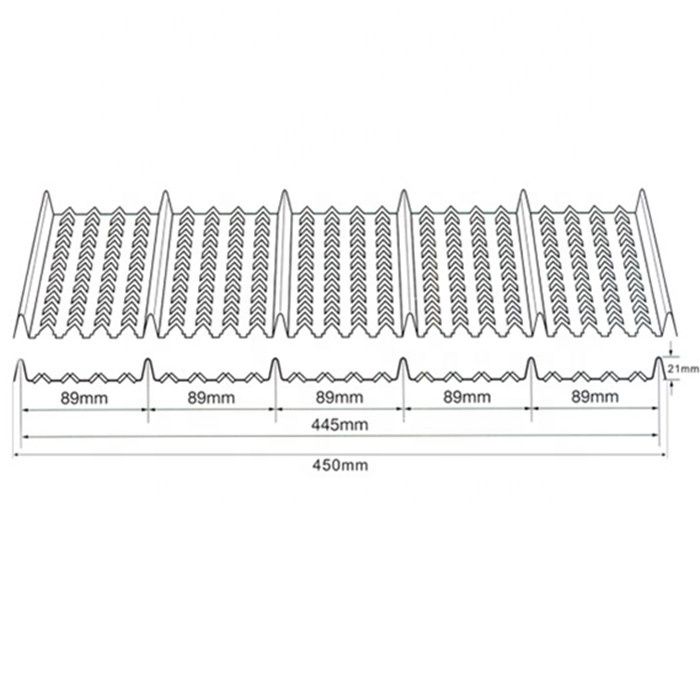

Specifications


Modle NumberThickness(mm)
Weight(KGS)Width(mm)Length(mm)Rib Height(mm)Rib Distance(mm)
HyRib-021
0.21
1.70
450
2200
14-21
90
HyRib-023
0.231.90450220014-2190
HyRib-028
0.282.35450220014-2190
HyRib-045
0.453.70
450220014-2090
Packing100 Pieces, 200 Pieces, 500 Pieces /  Pallet or Customized.
Noteother length, thickness, raw material is also available.

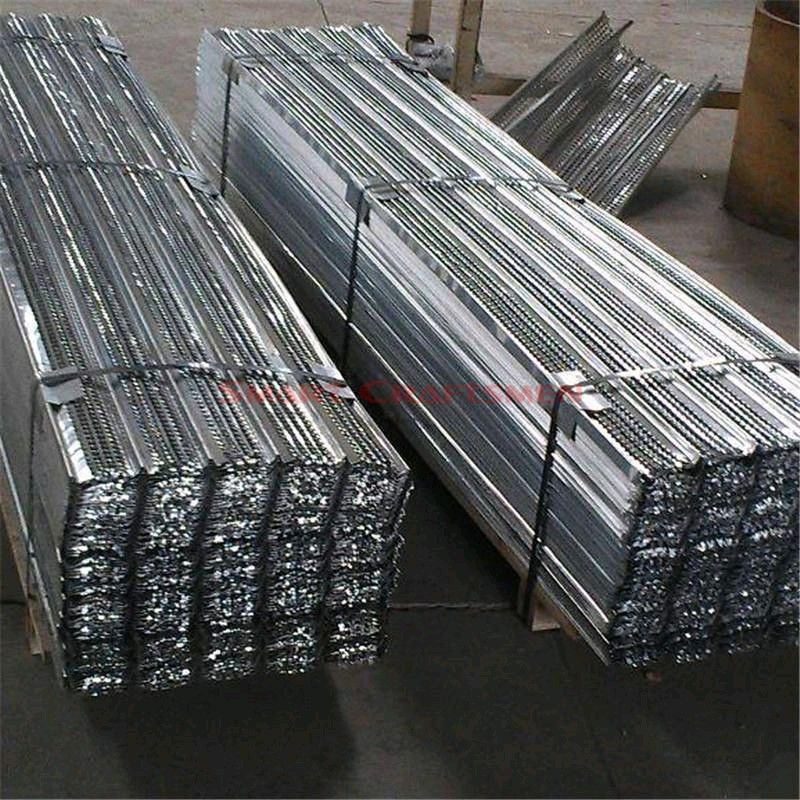

Packing
