Product Name: Expanded Metal Lath Coil (Brick Reinforcement)
Item Code: Smart Craftsmen-EXMET
Raw Material: Galvanised steel or Stainless Steel.
Package: Cartons and Pallets.
Length: 20 Metre Coils or Other Length.
Place of Origin: Hebei, China.
Standards: EN 10346 DX51D Z275 and SS garde of 1.4301 Stainless Steel.

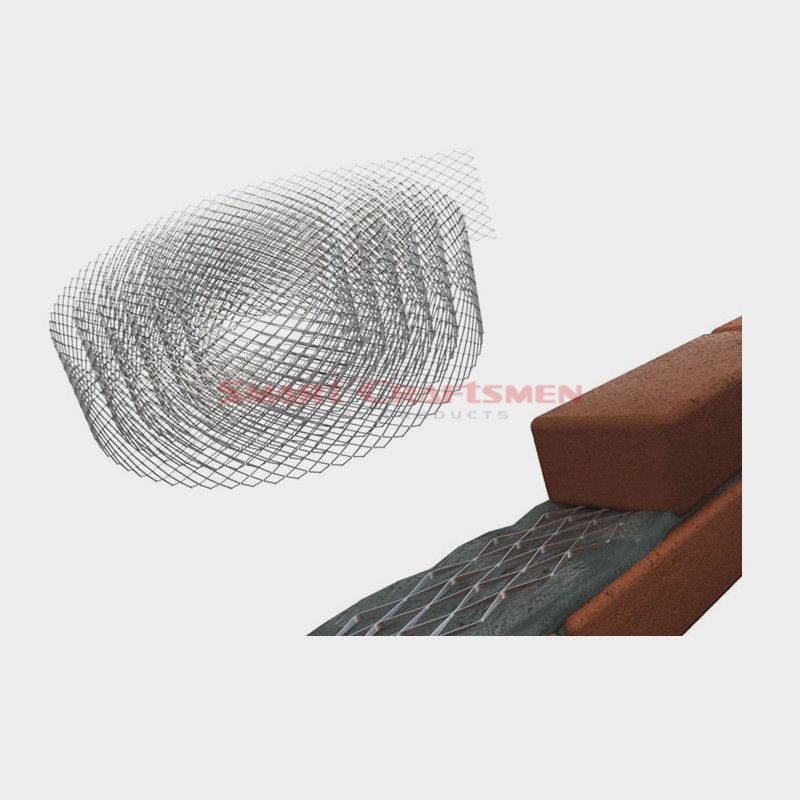

Expanded Metal Lath Coil (Brick Reinforcement), Coiled Mesh Lath is produced for brick and block work reinforcement. Primarily usage is to prevent cracking.
Specifications
Galvanized Expanded Metal Lath Coil
• Galvanised steel EN 10346 DX51D Z275.
• Available in widths; 63, 100, 175, 225, 305mm or Customized.
• 20 metre coils or Customized.
Stainless Steel Expanded Metal Lath Coil
• Grade 1.4301 austenitic stainless steel to EN 10088-2.
• Available in lengths; 63. 100, 175, 225mm or Customized.
• 20 metre coils or Customized.
Installation:
• Overlap by a minimum of 75mm when joining two lengths together.
• Stainless steel should be used for external work or in damp conditions.
• Gloves should be worn as edges will be sharp.
Code | Description | Thickness | Width | Length |
G-EXMET | EN 10346 DX51D Z275 Galvanized Steel | 0.35-0.50mm | 63mm | 20 metre |
G-EXMET | EN 10346 DX51D Z275 Galvanized Steel | 0.35-0.50mm | 100mm | 20 metre |
G-EXMET | EN 10346 DX51D Z275 Galvanized Steel | 0.35-0.50mm | 175mm | 20 metre |
G-EXMET | EN 10346 DX51D Z275 Galvanized Steel | 0.35-0.50mm | 225mm | 20 metre |
G-EXMET | EN 10346 DX51D Z275 Galvanized Steel | 0.35-0.50mm | 305mm | 20 metre |
S-EXMET | Grade 1.4301 Stainless Steel | 0.35-0.50mm | 63mm | 20 metre |
S-EXMET | Grade 1.4301 Stainless Steel | 0.35-0.50mm | 100mm | 20 metre |
S-EXMET | Grade 1.4301 Stainless Steel | 0.35-0.50mm | 175mm | 20 metre |
S-EXMET | Grade 1.4301 Stainless Steel | 0.35-0.50mm | 225mm | 20 metre |
Note | Other Length, Width, Thickness is also available. |
