Product Name: Heavy Duty Continuous Hychairs
Item Code: Smart Craftsmen-HDCW
Surface Treatment: Primary Color
Raw Material: Grade B500
Package: 1000 Pieces / Pallet or Customized.
Place of Origin: Hebei, China.
Standards: BS 7973 1:2001

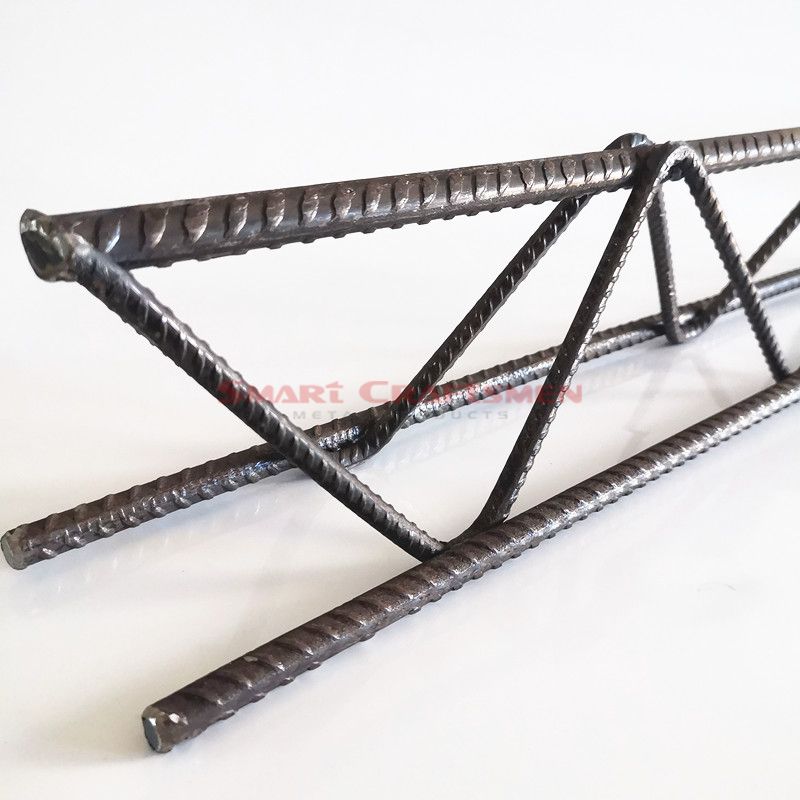

A Heavy Continuous High Chairs / Hystools / Deck Chairs / Lattice Girder and Robust Continuous Wire Chair manufactured from Grade B500 reinforcement steel incorporating larger diameter bars than our standard Hight Chairs. This Wire Chair has been specifically designed and manufactured to meet the exact performance standards of BS7973. The standard stipulates that the permanent deflection of the product should not exceed 1.0mm after a set load is applied to the various points along the wire chair. Meeting this specification reduces the chance of deformation of the wire chair during installation, reducing the potential for increases in concrete cover to the reinforcement, which in turn could leed to large crack widths than anticipated in the finished concrete surface. The wire chair feature should be considered when supporting the reinforcement steel for heavily reinforced slabs or when large amounts of foot traffic are anticipated either while fixing the reinforcement steel or during final concrete placement.
Specifications
Height(mm) | Bar Size(mm) | Length(mtr) | Weight(kg/mtr) | Pack Size(mtr) | ||
50 | 5.0 | 5.0 | 5.0 | 2 | 0.874 | 500 |
60 | 5.0 | 5.0 | 5.0 | 2 | 0.891 | 500 |
75 | 5.0 | 5.0 | 5.0 | 2 | 0.920 | 500 |
90 | 5.0 | 5.0 | 5.0 | 2 | 0.953 | 500 |
105 | 5.0 | 5.0 | 5.0 | 2 | 0.989 | 500 |
120 | 5.0 | 5.0 | 5.0 | 2 | 1.028 | 500 |
135 | 5.0 | 5.0 | 5.0 | 2 | 1.068 | 500 |
150 | 5.0 | 5.0 | 5.0 | 2 | 1.110 | 500 |
165 | 5.0 | 5.0 | 5.0 | 2 | 1.153 | 500 |
180 | 5.0 | 5.0 | 5.0 | 2 | 1.197 | 500 |
200 | 5.0 | 5.0 | 5.0 | 2 | 1.257 | 500 |
220 | 5.0 | 5.0 | 5.0 | 2 | 1.317 | 200 |
230 | 5.0 | 5.0 | 5.0 | 2 | 1.348 | 200 |
250 | 5.0 | 5.0 | 5.0 | 2 | 1.410 | 200 |
270 | 5.0 | 5.0 | 5.0 | 2 | 1.472 | 200 |
280 | 5.0 | 5.0 | 5.0 | 2 | 1.503 | 200 |
300 | 5.0 | 5.0 | 5.0 | 2 | 1.566 | 200 |
320 | 6.0 | 5.0 | 5.0 | 2 | 1.575 | 100 |
340 | 6.0 | 5.0 | 5.0 | 2 | 1.635 | 100 |
360 | 6.0 | 5.0 | 5.0 | 2 | 1.695 | 100 |
380 | 6.0 | 5.0 | 5.0 | 2 | 1.750 | 100 |
400 | 6.0 | 5.0 | 5.0 | 2 | 1.810 | 100 |
Note: | Other special bar size and wire thickness is also available. |
