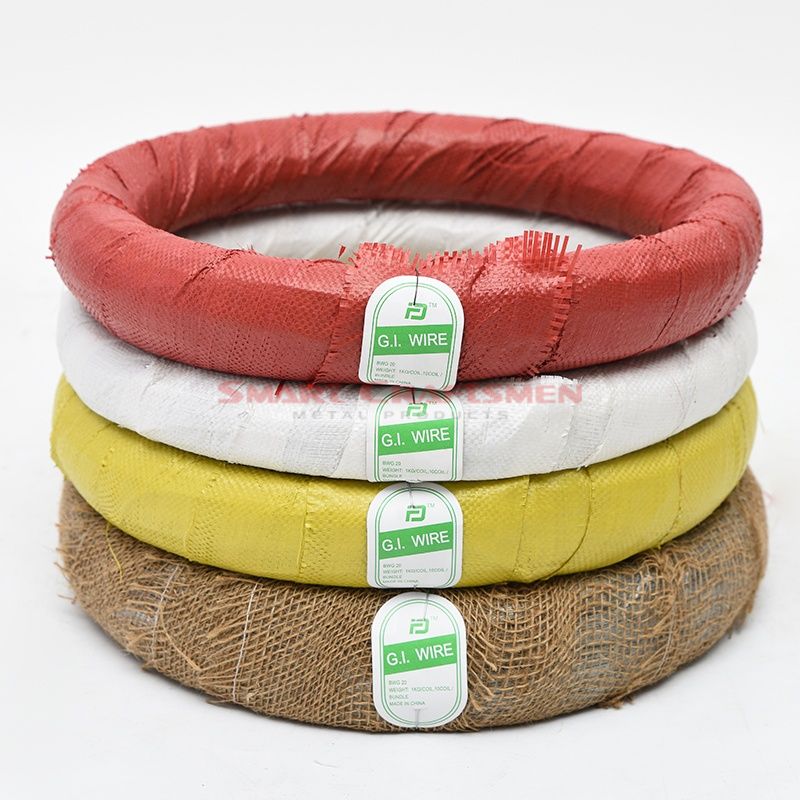

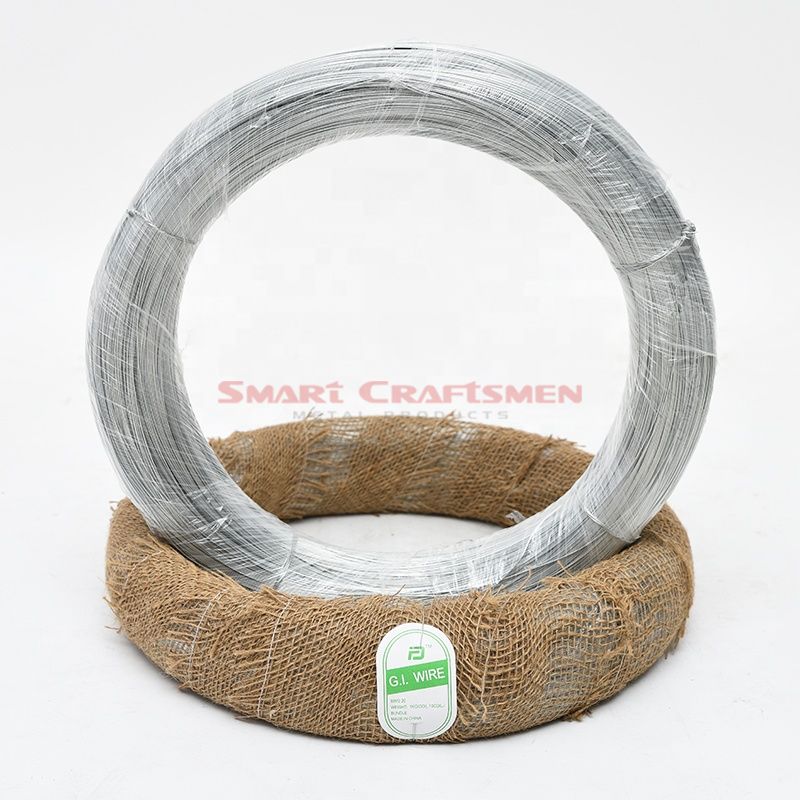

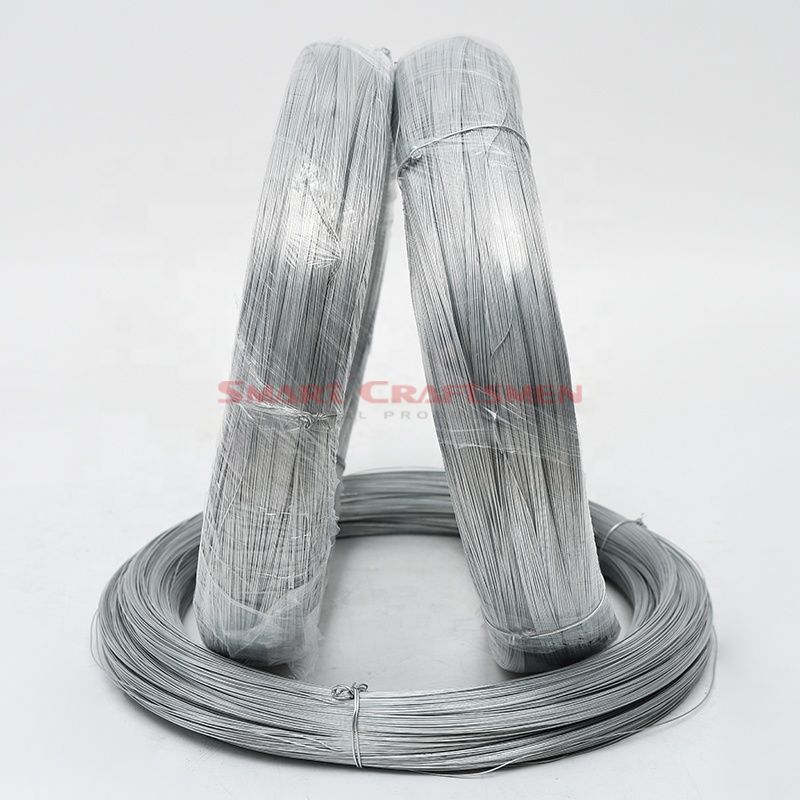

High Quality Electro Galvanized iron Wire

Product Name: Electro Galvanized Iron Wire

Item Code: Smart Craftsmen-EG Wire

Surface Treatment: Electro Galvanized.

Raw Material: SAE1006 SAE1008 Q195 Q235 or Others.

Tensile Strength: 330-550MPA

Package: Customize.

Place of Origin: Hebei, China.

Loading Port: Tianjin Port

Inquire Now Next Product

Products Details

Electro Galvanized Iron Wire is designed to prevent rusting and shiny silver in color. It is solid,durable and extremely versatile, it is widely used by landscapers, building,weaving the hardware cloth and mesh. Galvanized wire is divided into hot dipped galvanized wire and electro-galvanized wire (cold galvanized wire). Galvanized wire has good flexibility and toughness. with zinc coating thickness, corrosion resistance and other characteristics. Hot-dipped galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing, annealing and coiling.

Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc.

Products Features

Name	Hot Dipped Galvanized Wire	Electro Galvanized
Zinc Coated	45-366g / m2	10-18g / m2
Wire Gauge	BWG8-26#	AWG8-26#	SWG8-26#
Wire Diameter	4.00mm-0.46mm	4.00mm-0.46mm	4.00mm-0.46mm
Raw Material	Q 195 or As your request.
Tensile Strength	350-550N / mm2

Wire Gauge Size	SWG(mm)	BWG(mm)	BG(mm)
8	4.06	4.19	3.988
9	3.66	3.76	3.551
10	3.25	3.40	3.175
11	2.95	3.05	2.827
12	2.64	2.77	2.517
13	2.34	2.41	2.240
14	2.03	2.11	1.994
15	1.83	1.83	1.775
16	1.63	1.65	1.588
17	1.42	1.47	1.412
18	1.22	1.25	1.257
19	1.02	1.07	1.118
20	0.91	0.89	0.996
21	0.81	0.813	0.887
22	0.71	0.711	0.749
23	0.61	0.635	0.707
24	0.56	0.559	0.629
25	0.51	0.508	0.560
26	0.46	0.457	0.498
