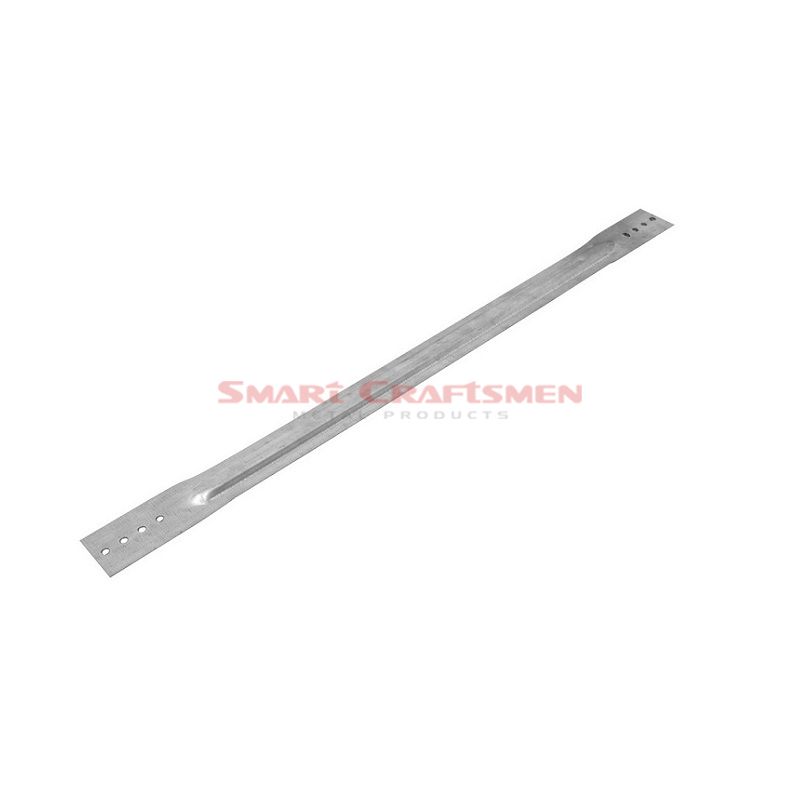

Product Name: China Stainless Steel Herringbone Joist Strut-530mm(450mm Joist Centres)
Item Code: Smart Craftsmen-HJSS530
Product Length: 530mm
Box Quantity: 100 pieces or customize
Thickness: 1.0mm
Raw Material: A2 Stainless Steel(Steel Grade 1.4301)
Product Name:
China Stainless Steel Herringbone Joist Strut-530mm(450mm Joist Centres)
Product Description:

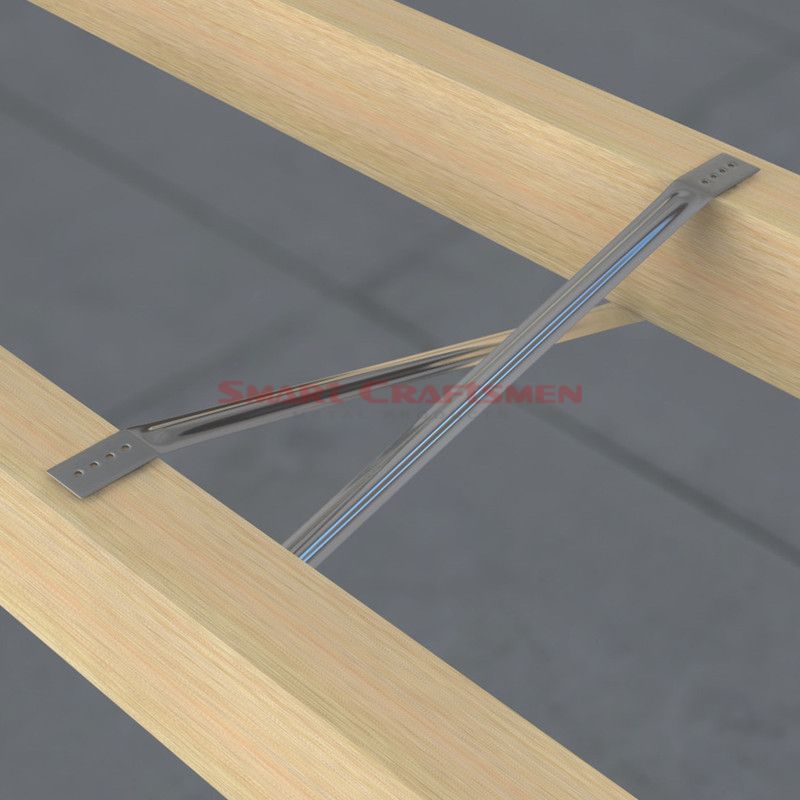

Herringbone Joist Struts provide the means to prevent sideways movement or the buckling of joists, a simple alternative to the labour intensive traditional timber noggins. Smart Craftsmen Herringbone Joist Strut-HJSS530 provides the means to prevent sideways movement or the buckling of joists, a simple alternative to the labour intensive traditional timber noggins. Made from A2 stainless steel(steel grade 1.4301). Joint centres - 450mm, Strut length - 530mm. Meets bracing requirements for long span domestic floors. In the interest of safety all corners are rounded. Only three sizes are needed to suit all standard nominal joist centres. Only two fixings per end are required.
Installation:
Generally required in the centre of the span when floor joists exceed 2.5 metres.
Where spans exceed 4.5 metres two rows will be required at 1/3 and 2/3 of span
The design is such that only three sizes are needed to suit all standard nominal joist centres. Only two fixings per end are required
Holes should be nailed using 30 x 3.75 square twist nails or equivalent screws.
For stainless steel products use 30 x 3.75 stainless steel annular ring shank nails.
