China Galvanised Herringbone Joist Strut-680mm(600mm Joist Centres)

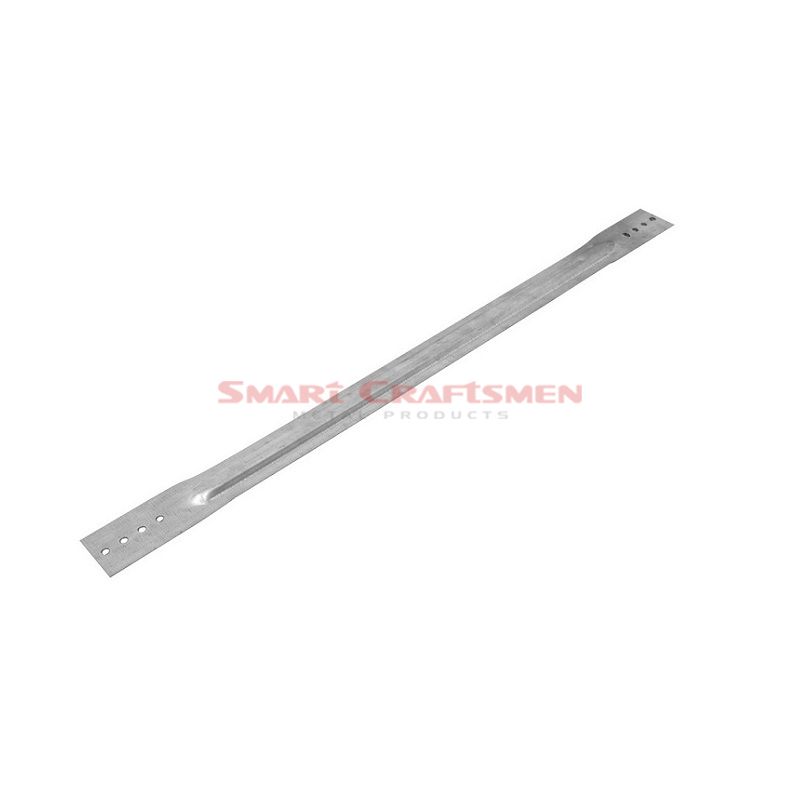

Product Name: China Galvanised Herringbone Joist Strut-680mm(600mm Joist Centres)

Item Code: Smart Craftsmen-HJSG680

Product Length: 680mm

Box Quantity: 100 pieces or customize

Thickness: 1.0mm

Raw Material: Galvanised steel EN 10346 DX51D Z275

Products Details

Product Name:


China Galvanised Herringbone Joist Strut-680mm(600mm Joist Centres)


Product Description:


Herringbone Joist Struts provide the means to prevent sideways movement or the buckling of joists, a simple alternative to the labour intensive traditional timber noggins. Smart Craftsmen Herringbone Joist Strut HJSG680 provides the means to prevent sideways movement or the buckling of joists, a simple alternative to the labour intensive traditional timber noggins. Made from galvanised steel EN 10346 DX51D Z275. Joint centres - 600mm, Strut length - 680mm. Meets bracing requirements for long span domestic floors. In the interest of safety all corners are rounded. Only three sizes are needed to suit all standard nominal joist centres. Only two fixings per end are required.

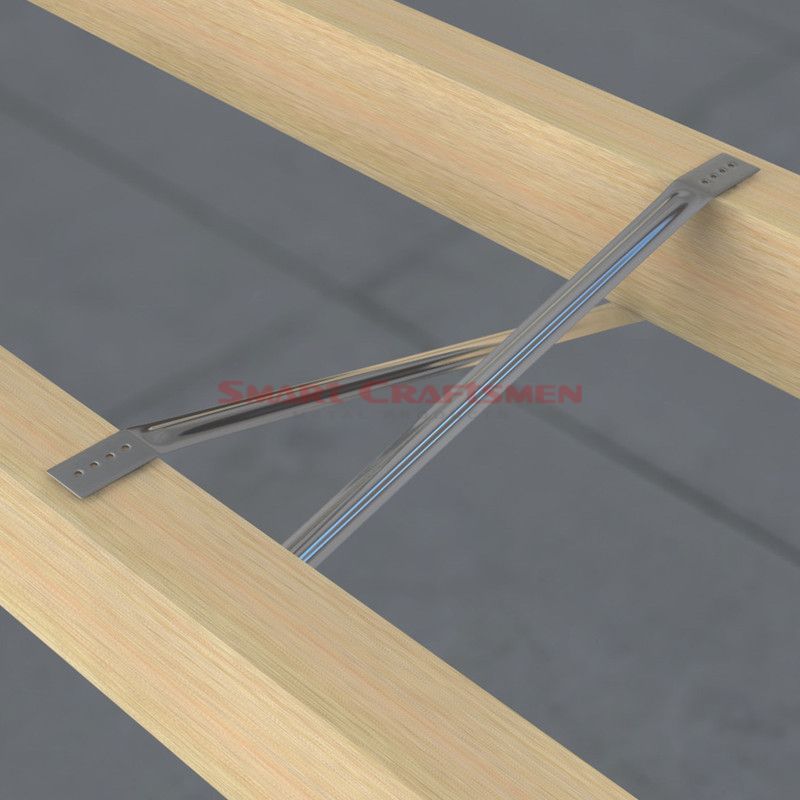

Installation:


  • Generally required in the centre of the span when floor joists exceed 2.5 metres.

  • Where spans exceed 4.5 metres two rows will be required at 1/3 and 2/3 of span

  • The design is such that only three sizes are needed to suit all standard nominal joist centres. Only two fixings per end are required

  • Holes should be nailed using 30 x 3.75 square twist nails or equivalent screws.

  • For stainless steel products use 30 x 3.75 stainless steel annular ring shank nails.
