China Type 4 wall ties (CE & UKCA Marking)-200mm

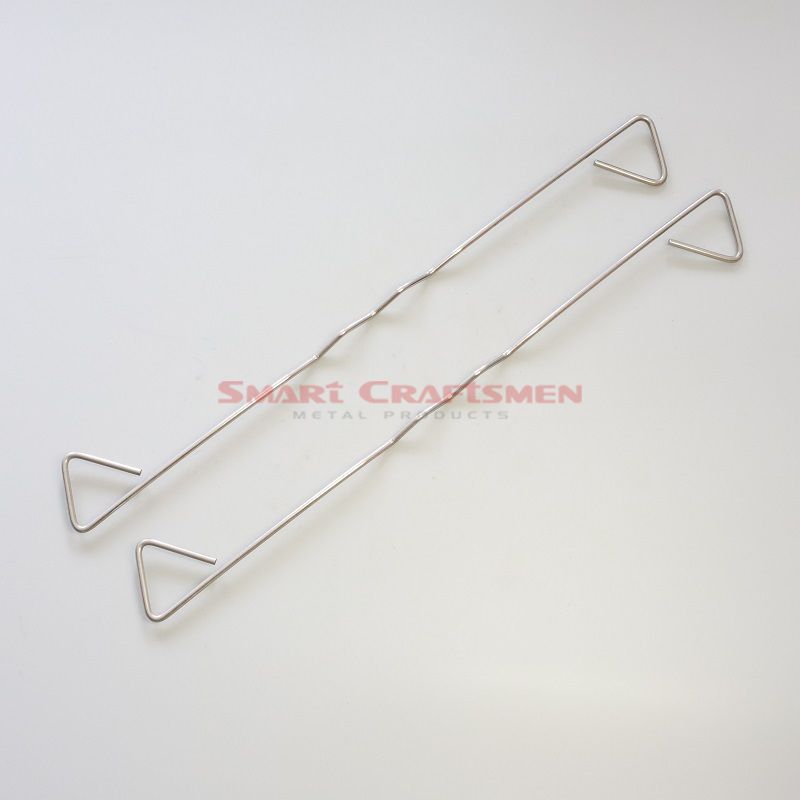

Product Name:  200mm Type 4 Wall Tie(CE & UKCA Marking)

Item Code:  Smart Craftsmen-WTT4200

Surface Treatment: Shiny.

Raw Material: Stainless Steel 304( Grade1.4301) or Up on your request.

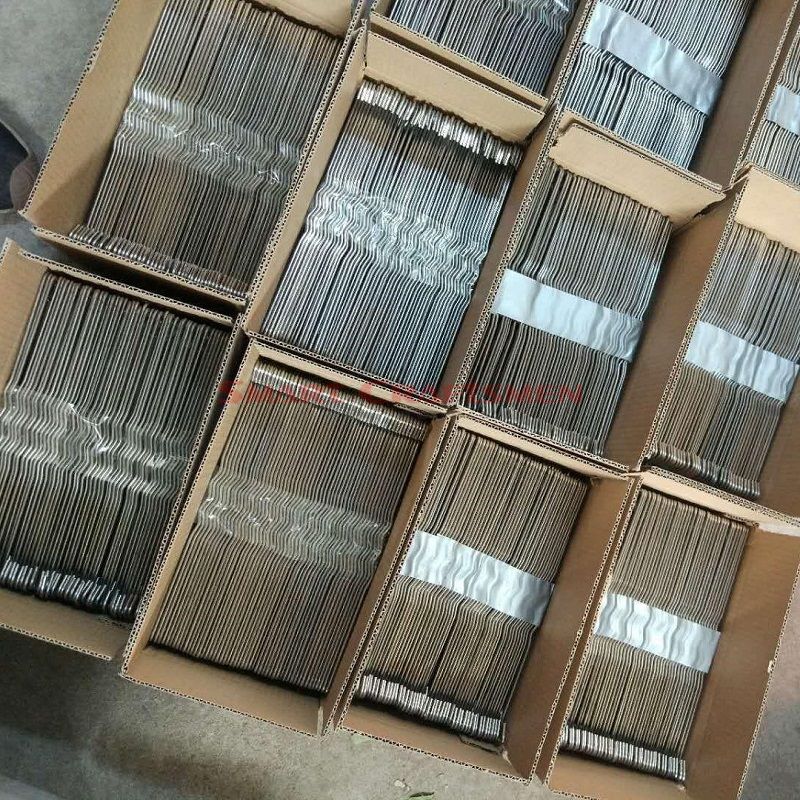

Package: 250 pieces / Inner Box, 2 or 4 Inner boxes /  Master Carton.

Standards: PD 6697 and EN 845-1:2013+A1:2016.

Products Details

The Type 4 wall tie is suitable for cavities from 50mm to 150mm and can be used in the construction of domestic houses up to 10 metres in height. Altitude and wind speed restrictions may apply.

Independent tests have proven the Type 4 wall tie has a measured dynamic stiffness of <4.8MN/m3 when installed at a standard 2.5 ties/m2 spacing and is therefore suitable for internal separating (party) walls of new-build attached dwellings with cavities from 50mm to 150mm.

The Type 4 wall tie can be used with all approved robust details for cavity masonry separating walls, whether traditional or thin-joint blockwork. Use of these details eliminates the need for pre-completion sound testing.


Wall Tie LengthCavity Width


  • Specially designed safety ends provide excellent mortar key, reduce the risk of injury on site and prevent tangling.

  • Clear, easily distinguishable packaging for on-site ease when different types of wall tie may be required.

  • Manufactured from corrosion resistant stainless steel, whilst the high tensile wire minimises thermal loss through cold bridging.

  • Multiple drips prevent water crossing the cavity whichever way up the tie is installed.


Other special length and wire thickness is upon customers' requested.
