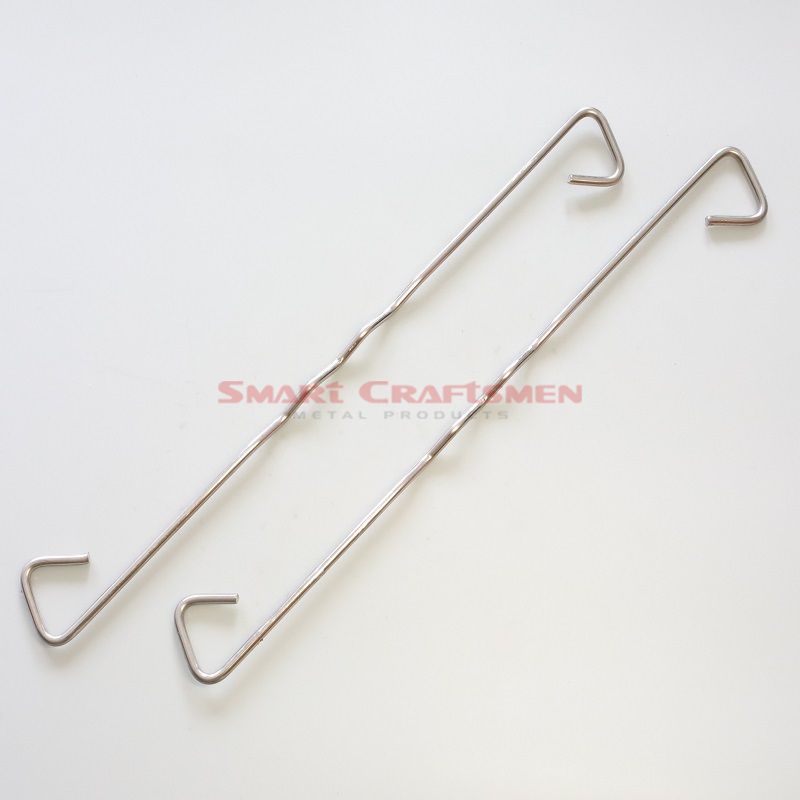

Product Name: 200mm Type 2 Wall Tie(CE & UKCA Marking)
Item Code: Smart Craftsmen-WTT2200
Surface Treatment: Shiny.
Raw Material: Stainless Steel 304( Grade1.4301) or Up on your request.

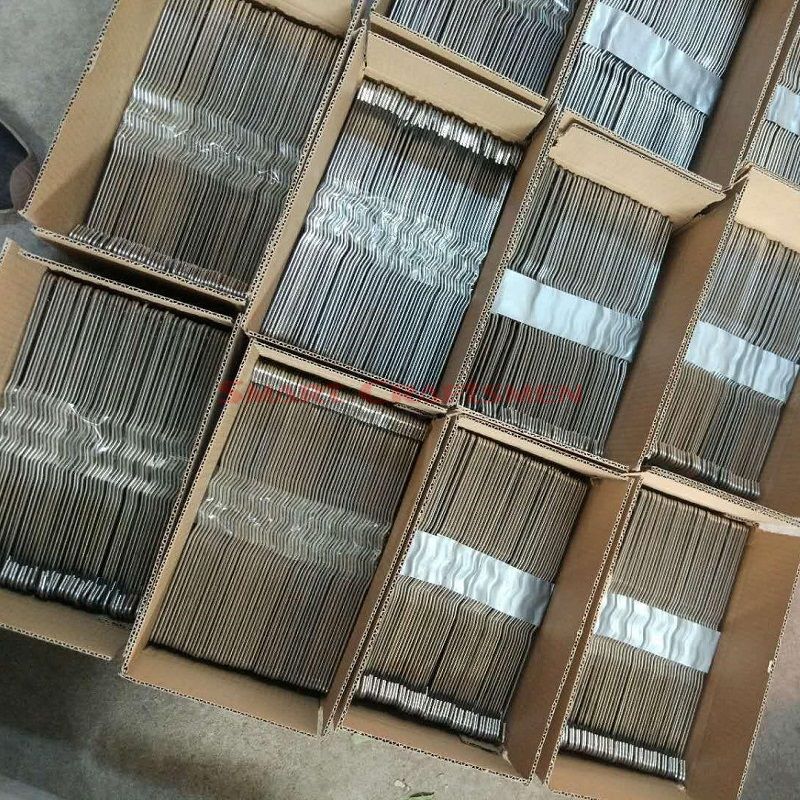

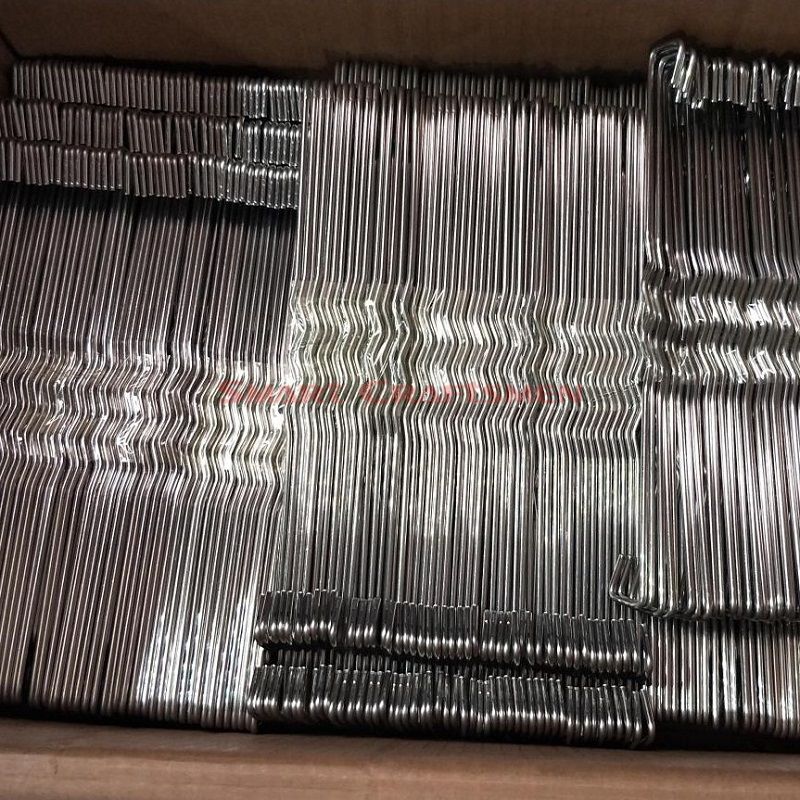

Package: 250 pieces / Inner Box, 2 or 4 Inner boxes / Master Carton.
Standards: PD 6697 and EN 845-1:2013+A1:2016.
The Type 2 wall tie is a general purpose tie suitable for cavities from 50mm to 150mm and can be used for Europe domestic houses and small commercial buildings up to 15 metres in height. The Type 2 wall tie is CE & UKCA marked, The measured dynamic stiffness of <113MN/m3 meets the performance requirement of Approved Document E for use in external masonry walls. the testing results can meet the standard of PD 6697 and confirm to BS EN 845-1:2013+A1:2016.
Specifications
Wall Tie Length | Cavity Width |
200mm | 50-75mm |
225mm | 76-100mm |
250mm | 101-125mm |
275mm | 126-150mm |
Benefits
A: Specially designed safety ends provide excellent mortar key, reduce the risk of injury on site and prevent tangling.
B: Clear, easily distinguishable packaging for on-site ease when different types of wall tie may be required.
C: Manufactured from corrosion resistant stainless steel, whilst the high tensile wire minimises thermal loss through cold bridging.
D: Multiple drips prevent water crossing the cavity whichever way up the tie is installed.
Note
Other special length and wire thickness is upon customers' requested.
