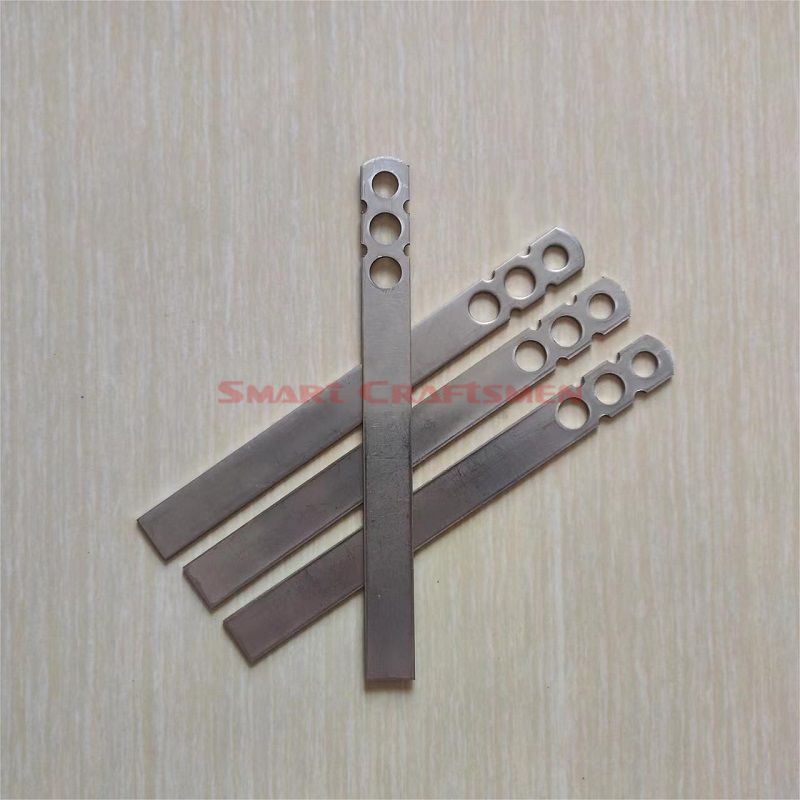

Product Name: China PPS Movement Tie 225mm
Item Code: Sitefix-PPS225
Product Length: 225mm
Raw Material: Stainless Steel 304( Grade1.4301) or Up on your request.

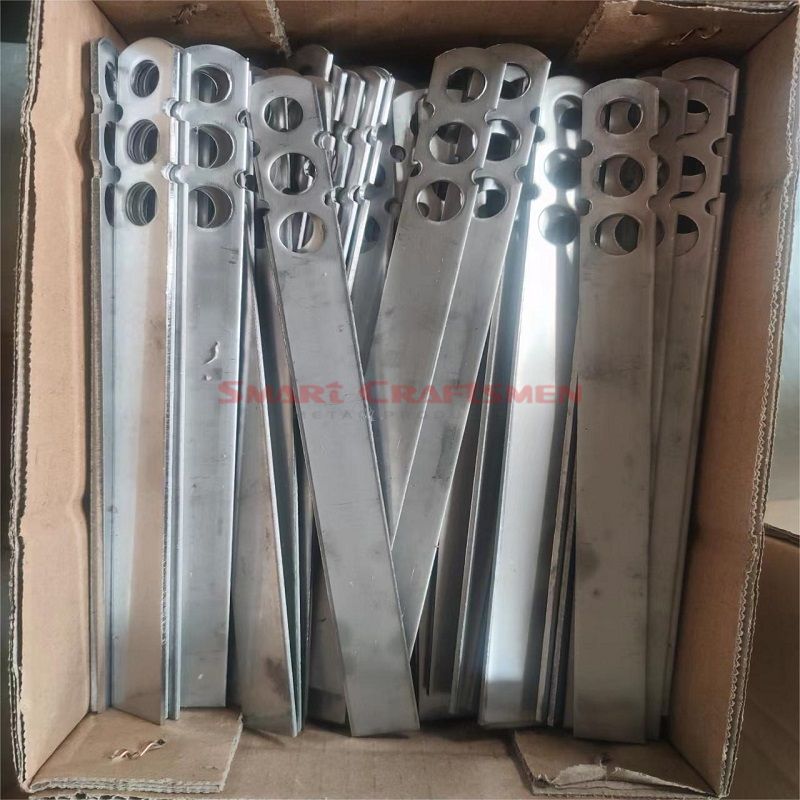

Package: 250 pieces / Carton Box. then pack into the pallet.
Standards: PD 6697 and EN 845-1:2013+A1:2016.
Product Name:
China PPS Movement Tie 225mm
Product Information:
Smart Craftsmen PPS Movement tie is a vertical movement joint Safety Wall Tie that allow for masonry / brickwork to expand and contract. Debonding sleeves are used on plain-ended wall ties at vertical movement joints that abut columns. The tie will restrain the masonry against lateral wind loads but the sleeve will allow the masonry to expand or contract. Debonded ties should be installed with a 10mm gap at the end of the sleeve to allow for expansion of the masonry. Debonded ties require 100mm embedment. A 120mm long sleeve will provide an allowance for movement and tolerance, and will be suitable for most applications.
Features & Benefits:
UKCA Certified
CE marked
For use at vertical movement joints
Allows masonry to expand and contract

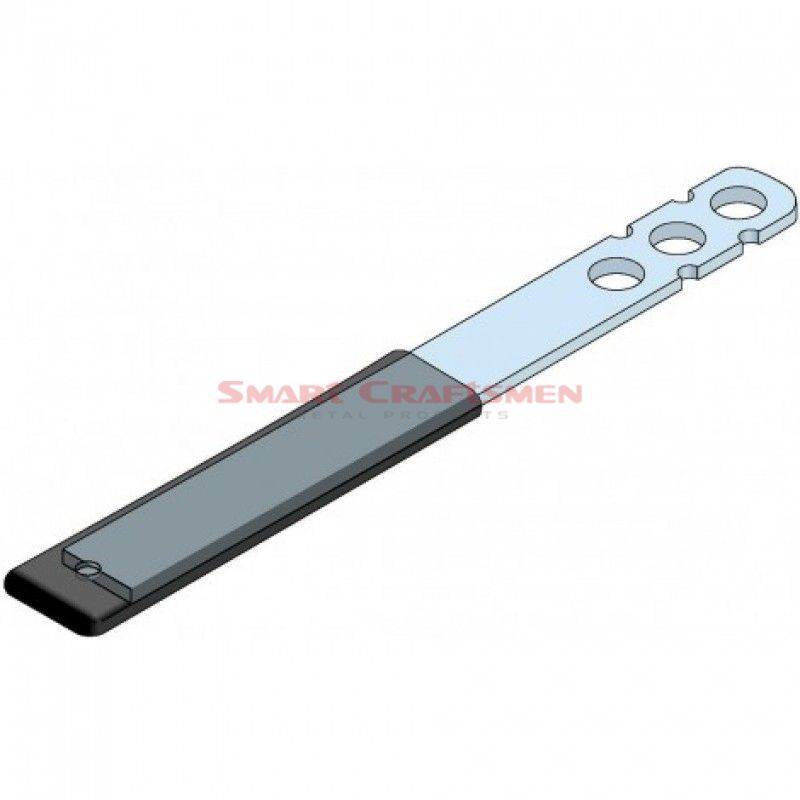

Designed for use with a debonding sleeve
Manufactured from stainless steel ensuring maximum durability and stability
Great secure and lasting stress-free connection
