Product Name: Ladder Mesh Wire Reinforcement(Block Mesh Reinforcement)
Item Code: Smart Craftsmen-LMWR
Surface Treatment: Shiny & Hot Dipped Galvanized & Mill Galvanized
Raw Material: Stainless Steel, Q195 or Customized.

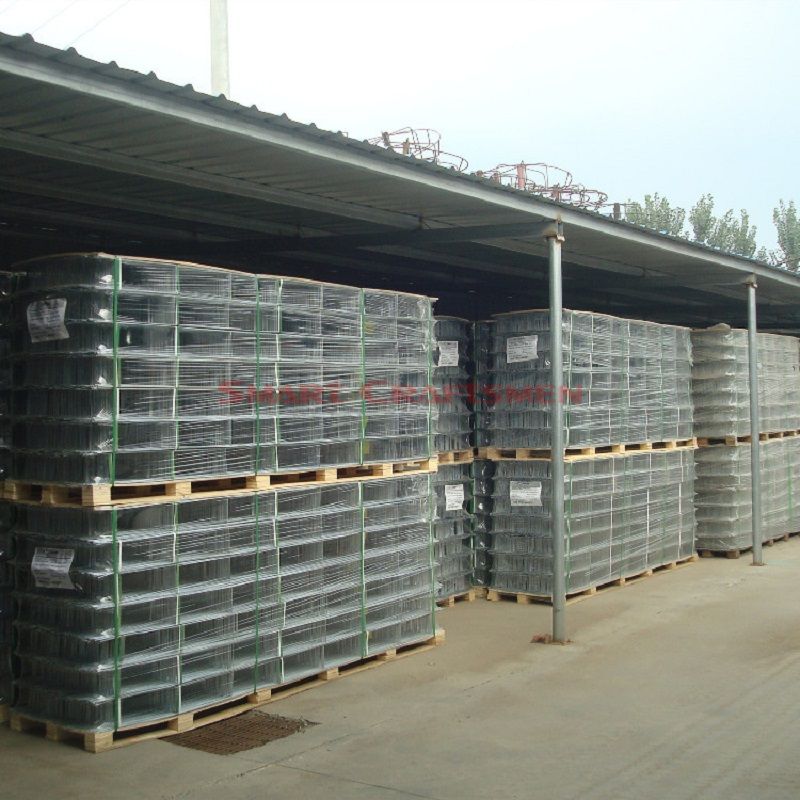

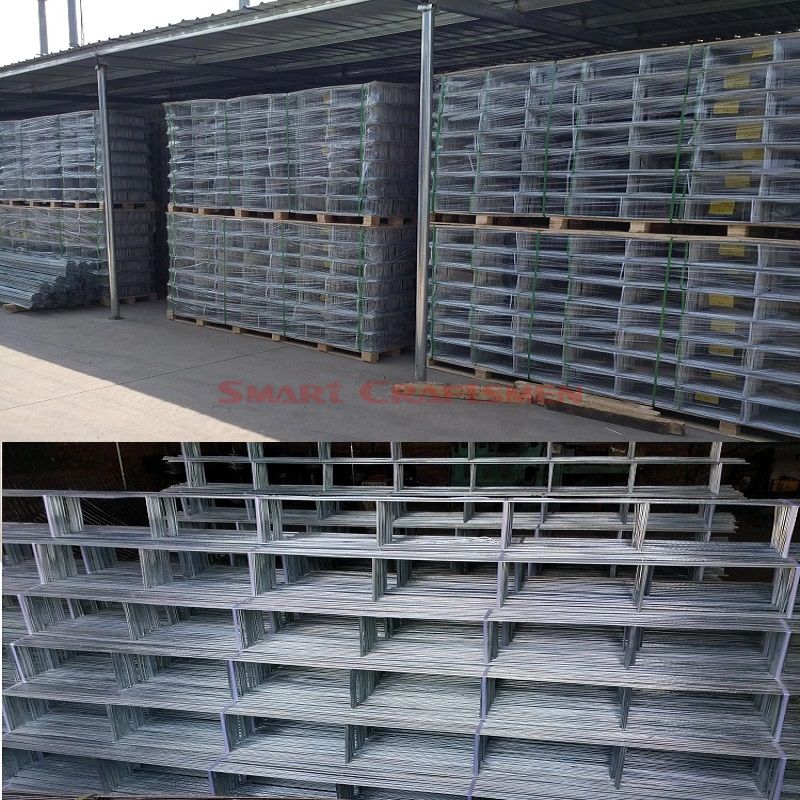

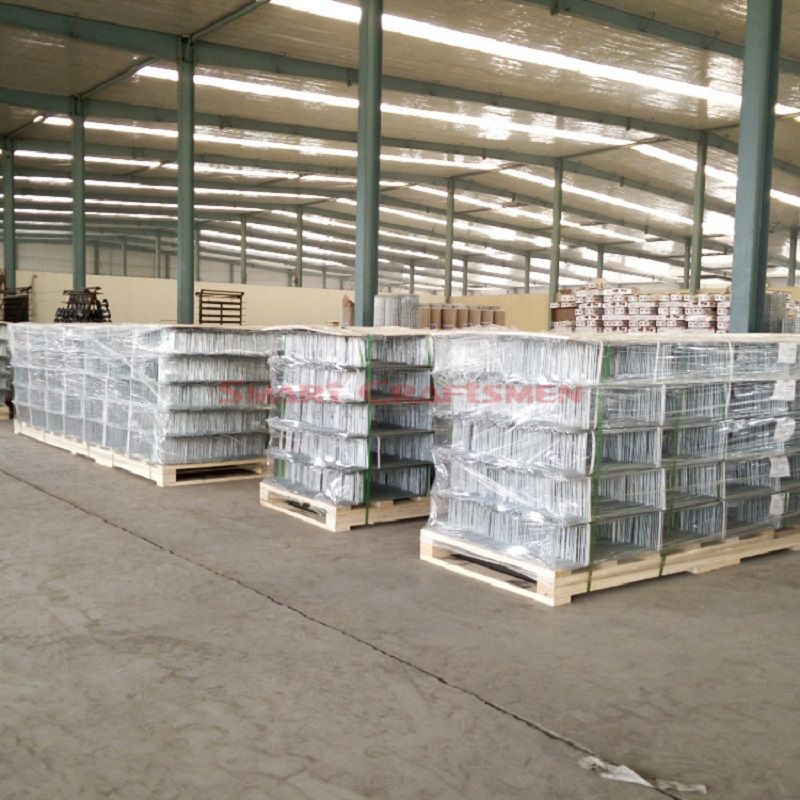

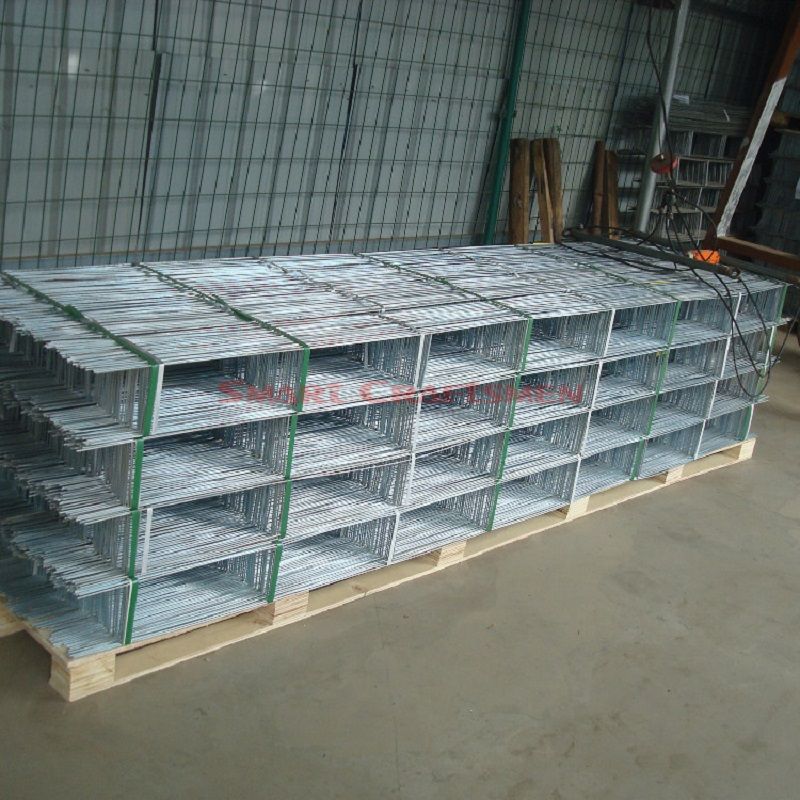

Package: 25 or 50 pieces / bundle, then pack into the pallets.
Place of Origin: Hebei, China.
Delivery Port: Tianjin-China.
Ladder Wire Reinforcement, Ladder Mesh Reinforcement, Block Mesh Reinforcement, Masonry Wire Reinforcement. Stainless steel and Hot-dip/Mill galvanized after welding block mesh, ladder mesh and truss mesh, side rods and cross rods wire diameter 9 gauge, length 10 feet. Package with pallet, 50 pcs per bundle, 20 bundles per pallet.
Specifications
| Block width | Ladder mesh width | Length | Weight (kg/pc) | 40' HQ pcs |
|---|---|---|---|---|
| 4" | 2" | 10' | 0.57 | 32000 |
| 6" | 4" | 10' | 0.61 | 31000 |
| 8" | 6" | 10' | 0.64 | 24000 |
| 10" | 8" | 10' | 0.68 | 18000 |
| 12" | 10" | 10' | 0.71 | 12000 |
| Package with pallet, 50 pcs per bundle, 20 bundles per pallet | ||||
| Block Width | Ladder mesh width | Length | Weight (kg/pc) | 40' HQ pcs |
|---|---|---|---|---|
| 4" | 2" | 10' | 0.56 | 32000 |
| 6" | 4" | 10' | 0.59 | 31000 |
| 8" | 6" | 10' | 0.63 | 24000 |
| 10" | 8" | 10' | 0.66 | 18000 |
| 12" | 10" | 10' | 0.69 | 12000 |
| Package with pallet, 50 pcs per bundle, 20 bundles per pallet | ||||
| Block Width | Ladder mesh width | Length | Weight (kg/pc) | 40' HQ pcs |
|---|---|---|---|---|
| 4" | 2" | 10' | 0.56 | 32000 |
| 6" | 4" | 10' | 0.59 | 31000 |
| 8" | 6" | 10' | 0.63 | 24000 |
| 10" | 8" | 10' | 0.66 | 18000 |
| 12" | 10" | 10' | 0.69 | 12000 |
| Package with pallet, 50 pcs per bundle, 20 bundles per pallet | ||||
Note: other special design with special diameter and length is also available.
