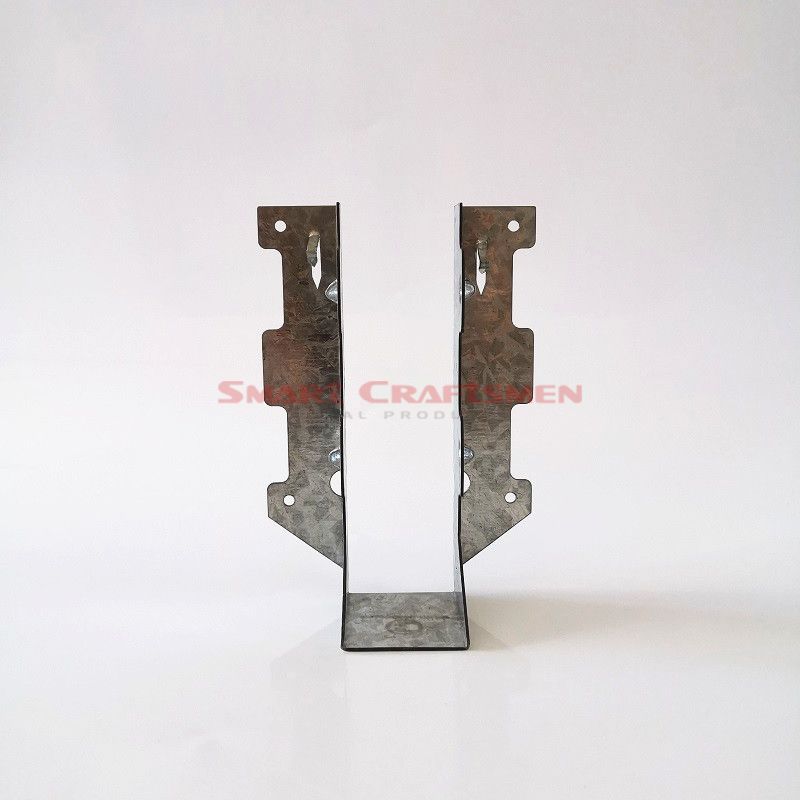

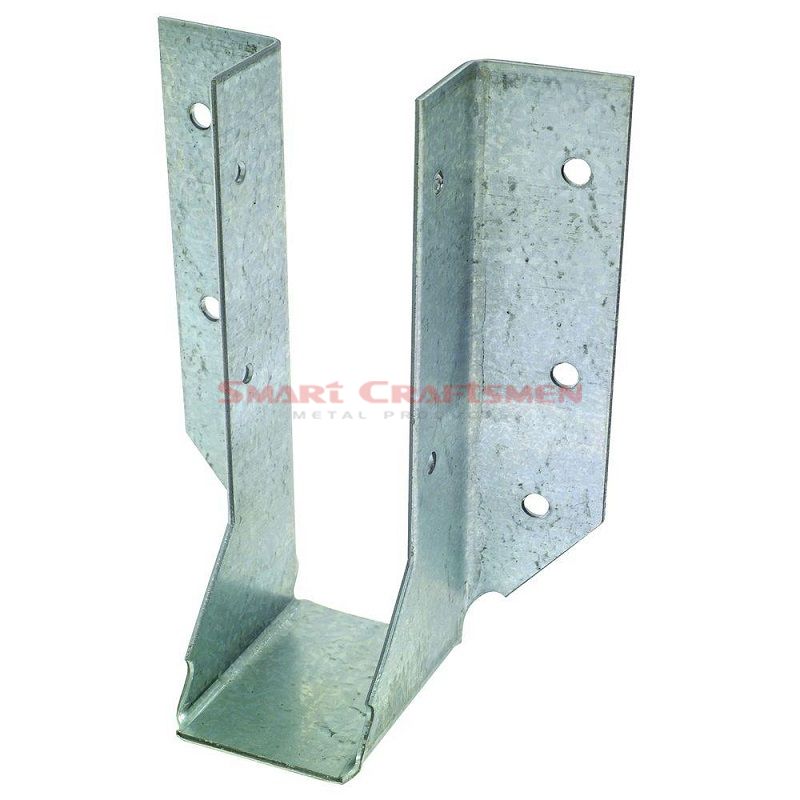

Timber Joist Hanger

Product Name:  Timber Joist Hanger

Item Code:  Smart Craftsmen-TJH

Process:  Stamping / Punching / Bending

Raw Material:  DX51D-Z275/G300-Z275 Hot Dipped Galvanized Steel Sheet or Customized.

Package:  20/40/60 pieces / CTN or Customized.

Place of Origin:  Hebei, China.

Delivery Port: Tianjin-China.

Products Details

Timber Joist Hangers are designed for use where a strong, rigid joint is required between members meeting at 90, e.g. truss/joist to beam, or rafter to bearer connection. and the raw material is 1-2mm SGH340 Z275/ G300 Z275 / DX51D-Z275 Galvanized Steel.

Specifications & Features

  1. Joist Hanger 47 x 90:   Designed for use where gauged timber of 47mm width and up to 150mm deep.

  2. Joist Hanger 47 x 120: Multi-use bracket suitable for gauged 47mm thick timber up to 200mm deep.

  3. Joist Hanger 47 x 190: Used for gauged 47mm thick timber up to 300mm deep.

  4. Joist Hanger 70 x 180: A special size joist hanger designed for gauged 69mm wide timbers.

  5. Joist Hanger 95 x 165: For use on gauged 94mm wide timber or double joists/trusses.

Note: Other designs and drawings can be produced according to customer's requested.


All of the above Joist Hanger connections should be fixed using nails 30mm x 3.15mm diameter, or Type 17-12g x 35mm Hex Head Screws. other special Hex Head Screws is also available.
