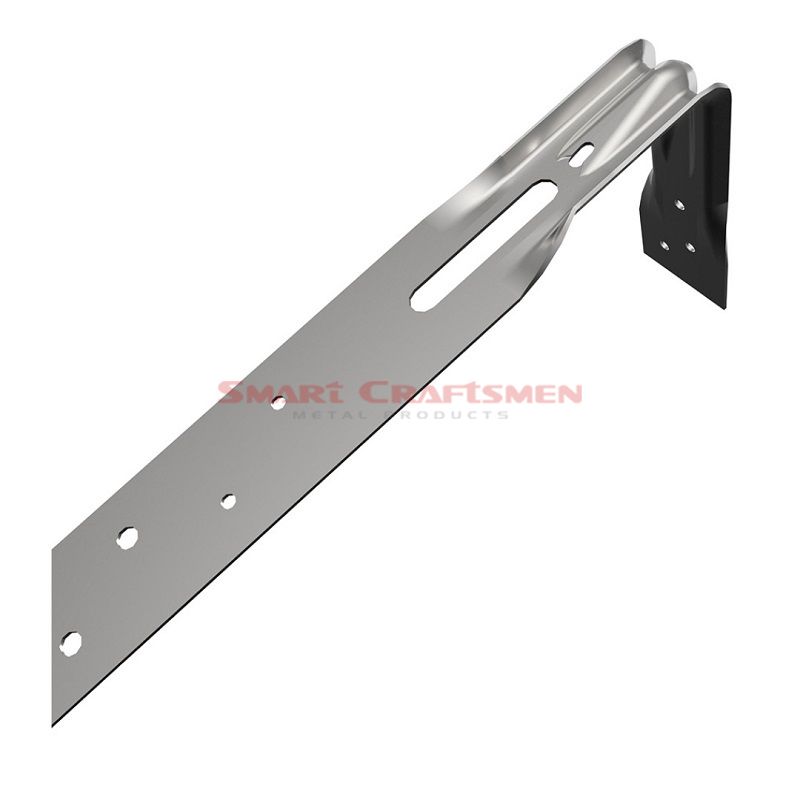

Product Name: Heavy Engineered Restraint Strap 1000mm
Item Code: Smart Craftsmen-HERS1000
Raw Material: Pre-Galvanised Stee(DX51D+G275)
Thickness: 1.5mm
Width: 38-40mm
Length: 1000mm or others customize length
Type: Innovative Bent Strap
Product Name:
Heavy Engineered Restraint Strap 1000mm
Product Information:
A direct replacement for traditional 2.0mm,2.5mm and 5mm thick restraint straps
these lightweight straps allows ease of handling and installation whilst maintaining the structural strength and robustness of much heavier weight types

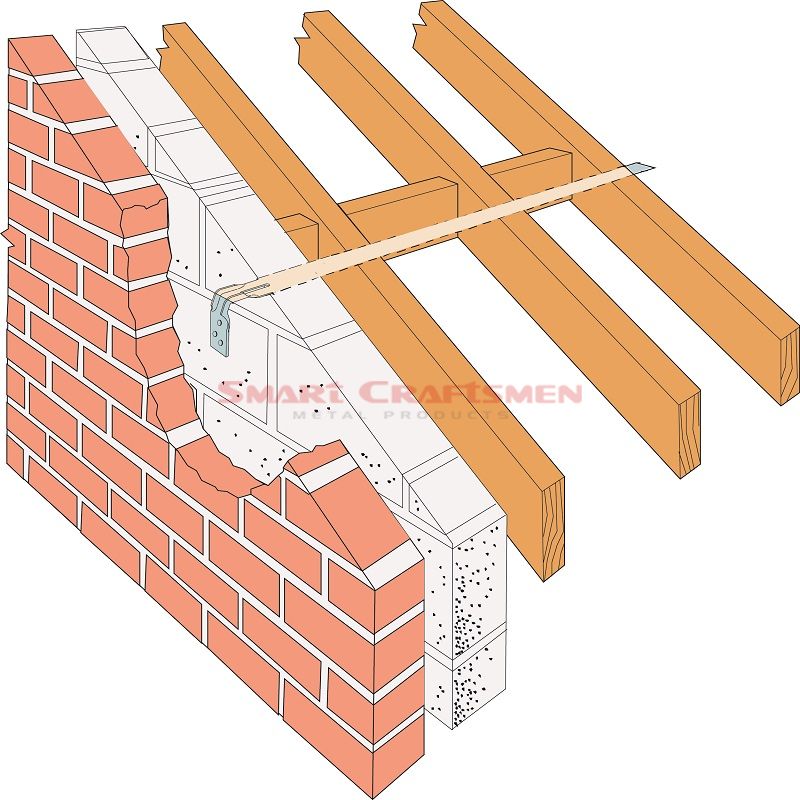

The heavy engineered straps replace traditional heavy and light restraint straps in roof and floor construction
Reducing the thickness to 1.5mm allows the HES strap to span over the top of floor joists and the bottom chords of trusses without the need for notching
less than 40% of the weight, quicker to fit, and overcome many fixing problems associated with traditional heavy straps
Formed edge design gives additional strength on bend
Quicker to install – can fit over top of floor joists and truss bottom chords
Easier to course with blockwork
No need to notch joists
Specifications:
Bent at: 100mm
Length: 900mm
Overall Length: 1000mm
Complies with BS EN 845-1
Material: Pre-galvanised mild steel
