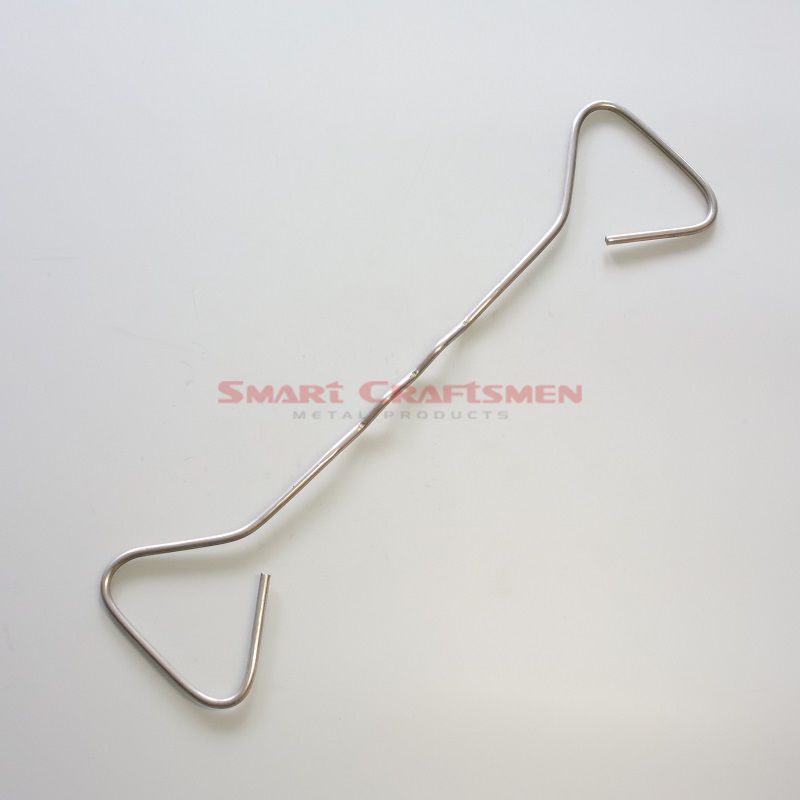

Product Name: 150mm Double Triangle Wire Wall Tie(CE Marked)
Item Code: Smart Craftsmen-WTDTT200
Surface Treatment: Shiny.
Raw Material: Galvanized Steel Wire or Stainless Steel 304( Grade1.4301) or Up on your request.

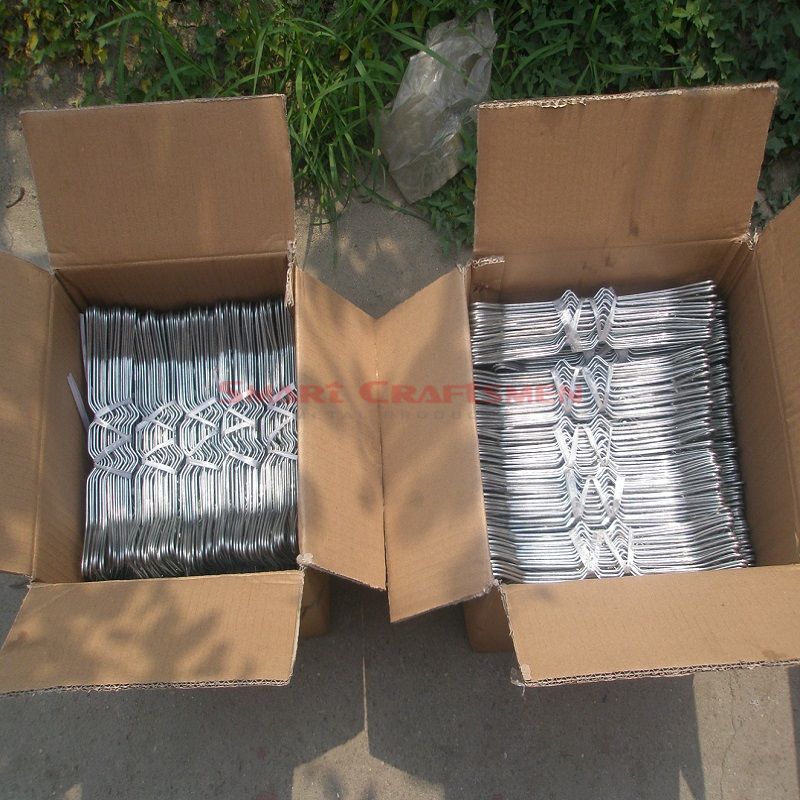

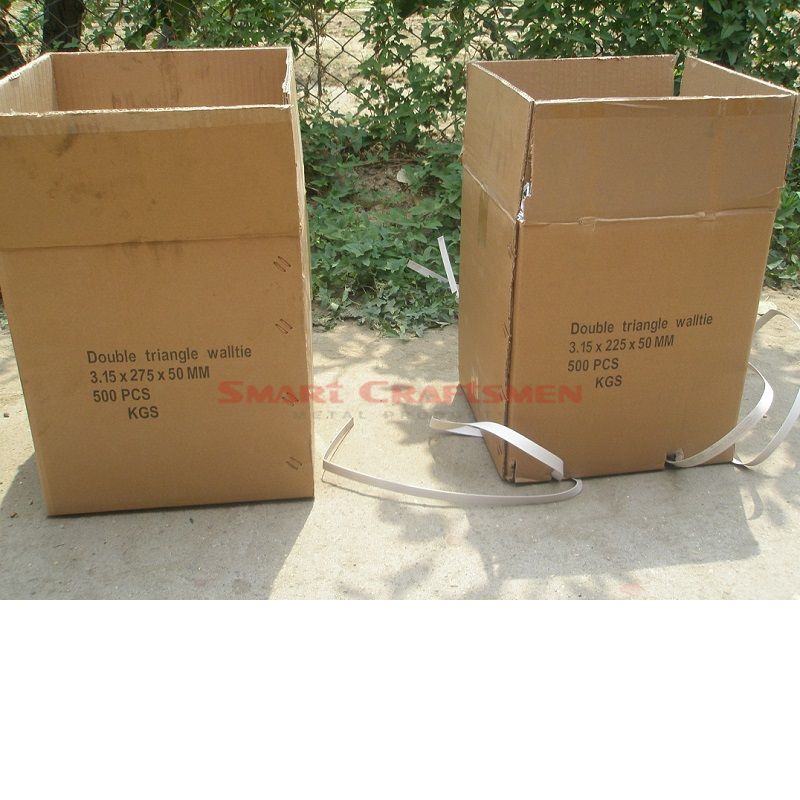

Package: 250 pieces / Carton. Inner boxes / Master Carton or Customized.
Standards: PD 6697 and EN 845-1:2013+A1:2016.
The Double triangle wall ties offers a practical and cost effective solution for masonry cavity walls in box form domestic dwellings of up to a maximum 10m in height. Used for cavities from 50mm to 70mm. it is manufactured from 4.0mm galvanized steel wire or stainless steel wire(1.4301). Meets the requirements of BS EN 845-1:2003 and according to the standard of PD6697.
| Wall Tie Length | Wire Thickness | Box Quantity |
| 150mm | 4.0mm | 250 PCS |
| 200mm | 4.0mm | 250 PCS |
| 225mm | 4.0mm | 250 PCS |
| 250mm | 4.0mm | 250 PCS |
| 275mm | 4.0mm | 250 PCS |
| 300mm | 4.0mm | 250 PCS |
Meets the requirements of BS EN 845-1:2003 and according to the standard of PD6697.
Clear, easily distinguishable packaging for on-site ease when different types of wall tie may be required.
Manufactured from corrosion resistant stainless steel, whilst the high tensile wire minimises thermal loss through cold bridging.
Safety on site.
Better storage particularly during inclement weather.
Other special length and wire thickness is upon customers' requested.
