Sandwich Panel Anchors-SPA1

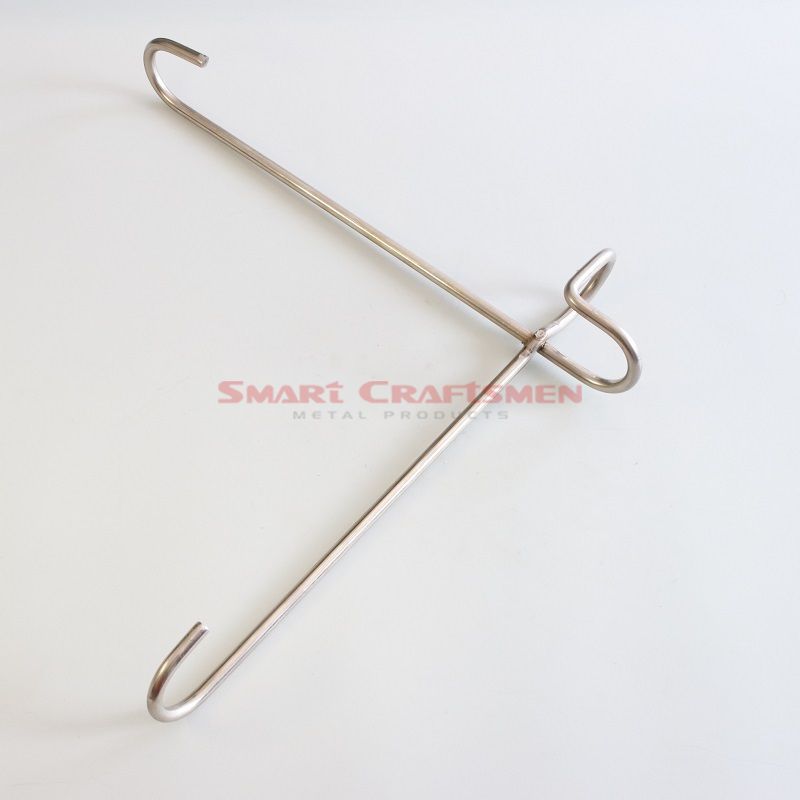

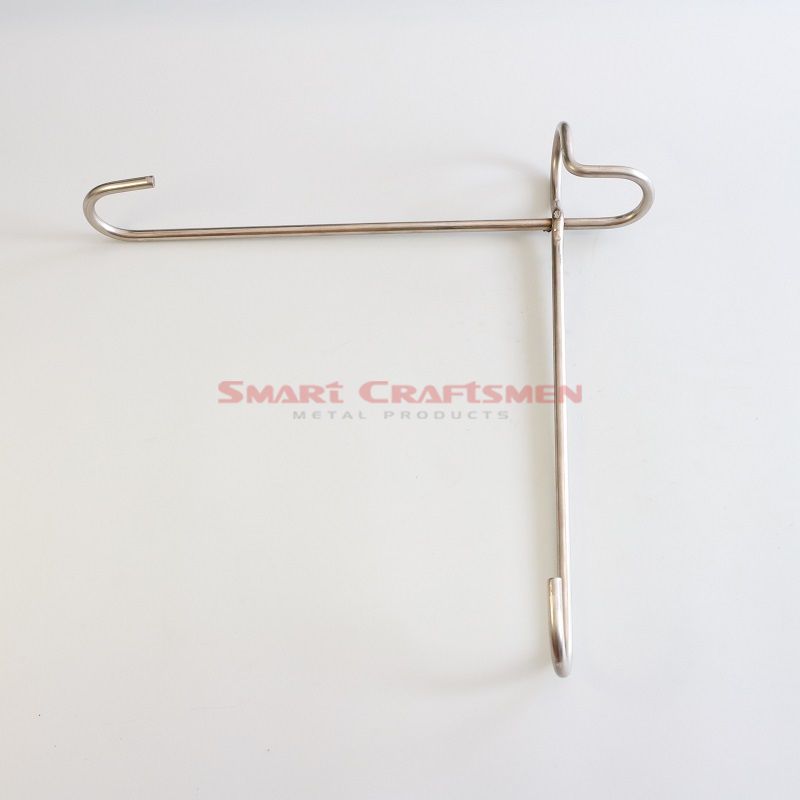

The Smart Craftsmen-SPA system SPA-1 can also be used as a horizontal anchor (if necessary the Smart Craftsmen-SPA-2 is as well suitable as a horizontal anchor). Primarily the horizontal anchor functions as a carrier of the horizontally acting forces (e.g. impact forces during lifting, wind forces on soffits or from panels hanging askew on the crane). To enable loads when panels are rotated for transport these anchors have to be dimensioned carefully. The Sandwich Panel System is an anchoring system made up of sleeve anchors, plate anchors and connector pins used in the construction of sandwich panels. Sandwich panels are large multilayer, reinforced concrete façade elements. They consist of a facing layer, an insulation and a load-bearing layer. The main function of the Smart Craftsmen Sandwich Panel Anchor System is to connect the load-bearing and facing layers of sandwich panels and to transfer the forces acting on the facing layer to the load-bearing layer. In addition, restricting the expansion and contraction of the facing layer is avoided.

Specifications & Features

• Wire Diameter: 5.0mm, 6.5mm, 8.5mm and 10.0mm

• Raw Materials: Stainless Steel A4 and D4(Grade 1.4571 / 1.4401 / 1.4404 / 1.4362)

• Packing Method: Customized.


• Quick and easy installation of anchors and pins.

• Reduction of mounting and planning effort.

• Insulation layer thickness up to 400 mm possible.

• High-quality stainless steel(SUS 316) and High corrosion protection.

• Installation possible with positive and negative production of sandwich panels.
