Butterfly Wall Tie(Galvanized & Stainless Steel)-200mm

Product Name:  200mm Butterfly Wire Wall Tie

Item Code:  Smart Craftsmen-WTBT200

Surface Treatment: Shiny.

Raw Material: Galvanized Steel Wire or Stainless Steel 304( Grade1.4301) or Up on your request.

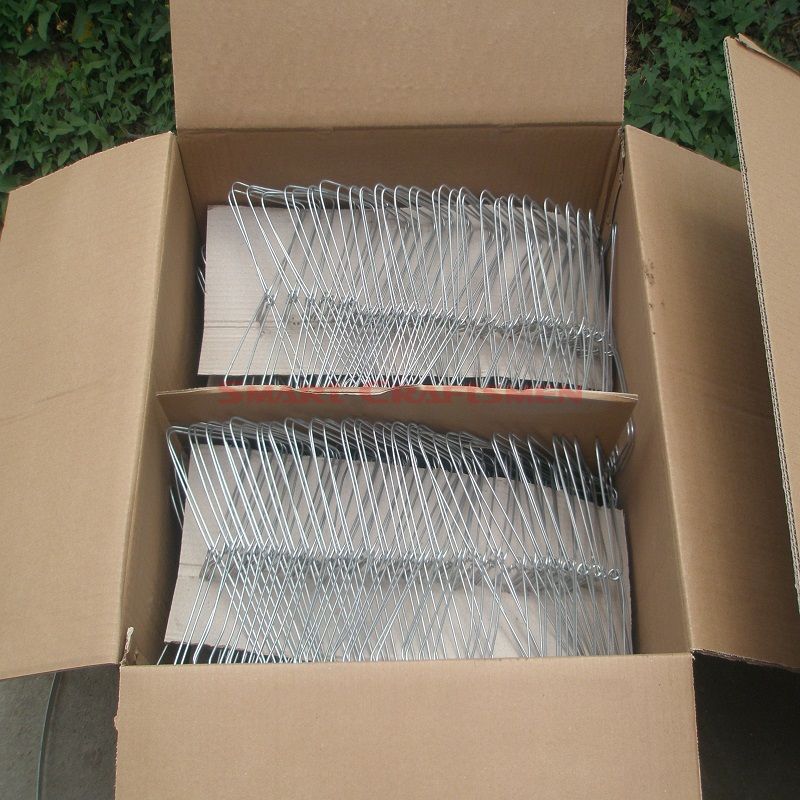

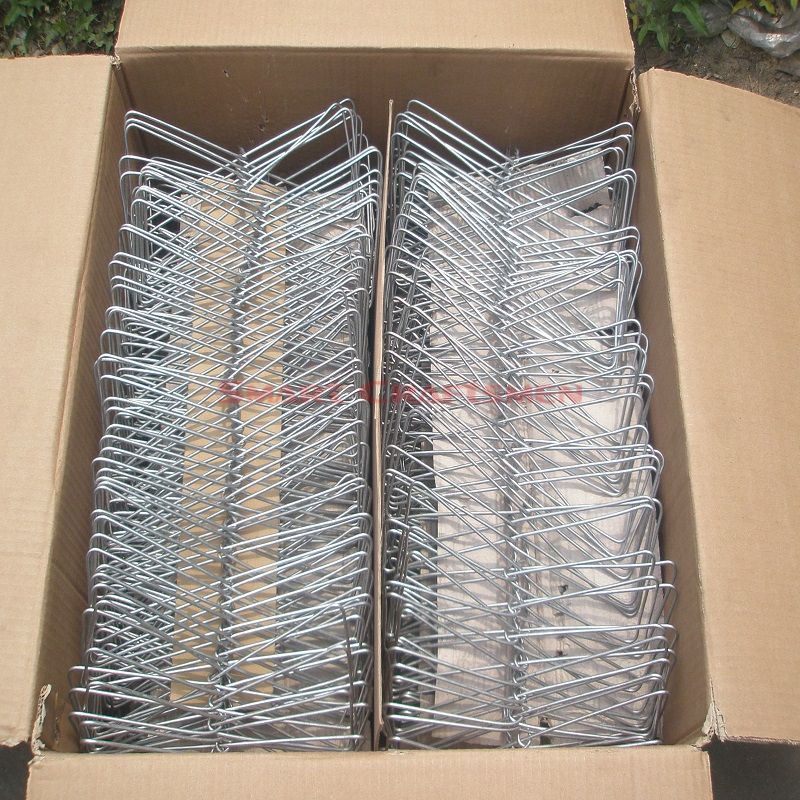

Package: 500 pieces / Carton. Inner boxes /  Master Carton or Customized.

Standards: PD 6697 and EN 845-1:2013+A1:2016.

Products Details

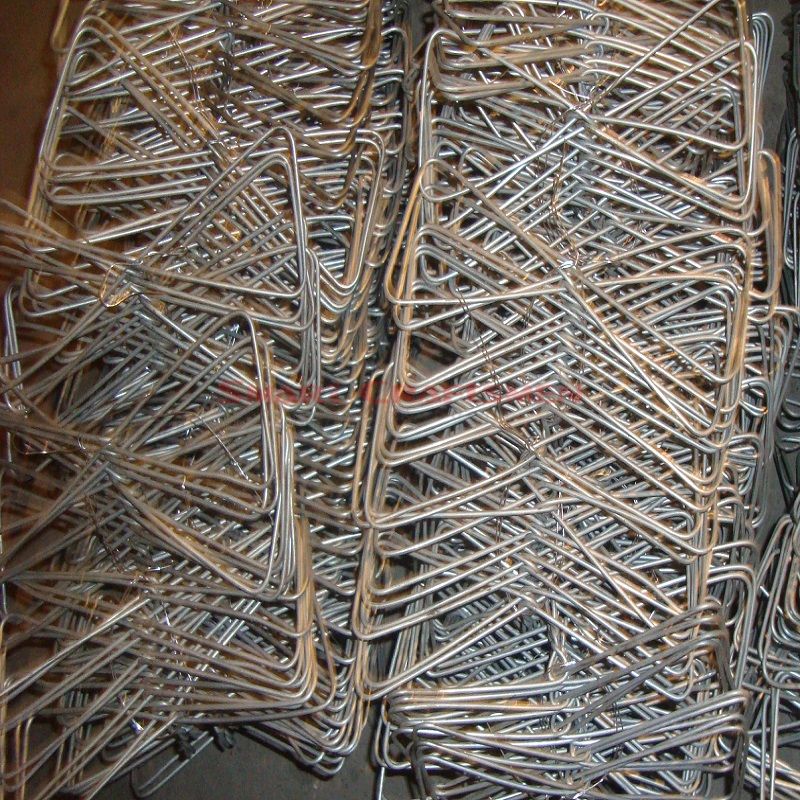

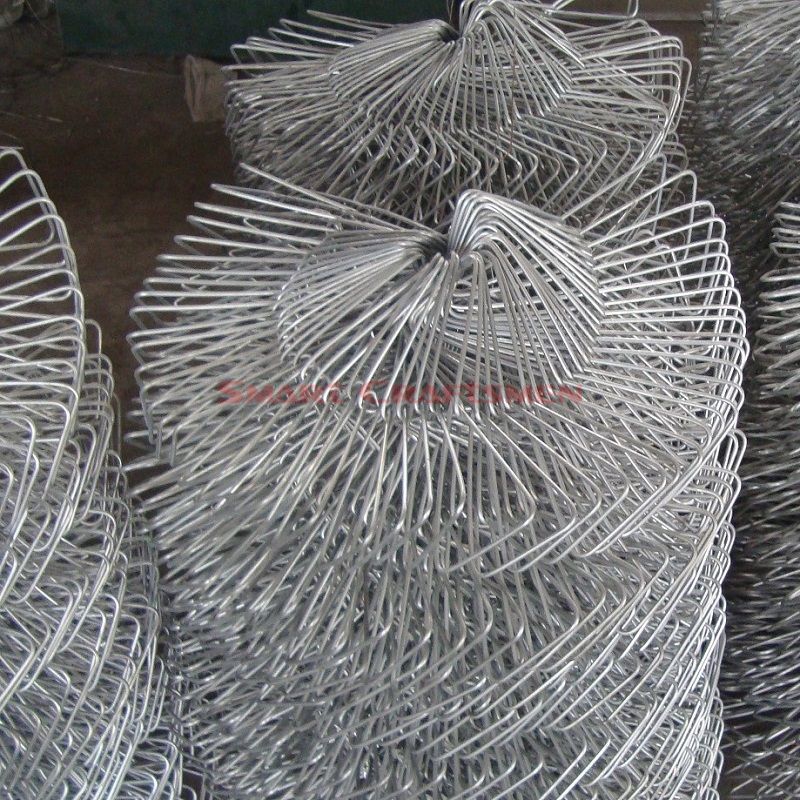

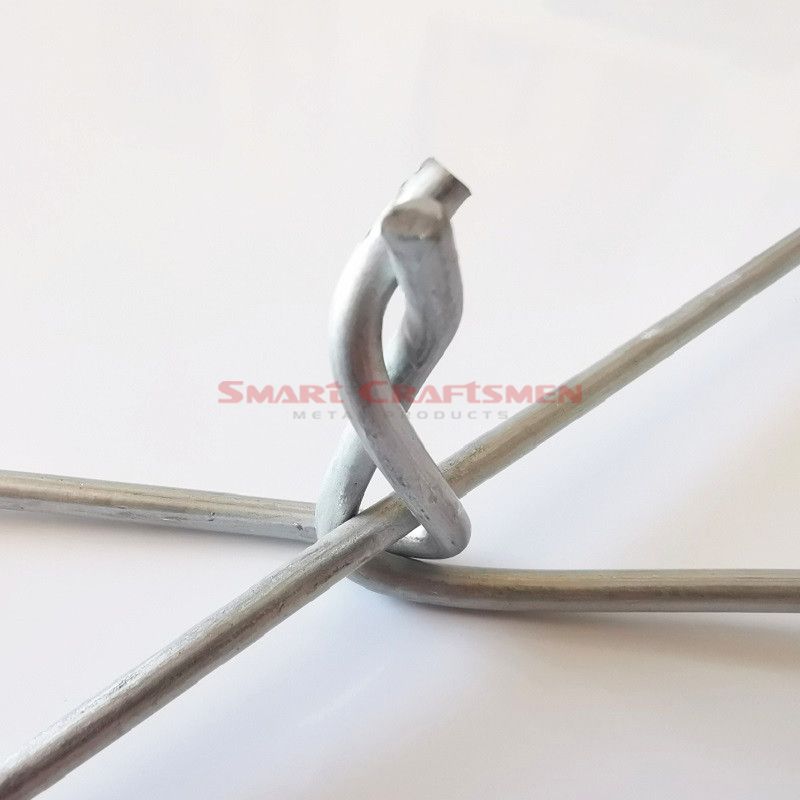

The Butterfly Wall Tie made from mill galvanized & hot dipped galvanized steel wire, stainless steel wire. It is used for connecting brick cavity walls. It is suggested to use 3-4 Butterfly Wall ties per m2. To calculate the length of Butterfly Wall Tie required deduct 20-50 mm from the entire wall thickness including the cavity.


Product No.Total Length(mm)Wire Diameter(mm)
Packing Method(Pieces)
NB180 TIE1802.5

                Upon your requested

NB200 TIE2002.5
NB225 TIE2252.5
NB250 TIE2502.5
NB275 TIE2752.5
KB180 TIE180
KB200 TIE2003.15
KB225 TIE2253.15
KB250 TIE2503.15
KB275 TIE2753.15
NOTEOther special length and wire diameter is also available.


Other special length and wire thickness is upon customers' requested.
